Ubiquiti (AF60-LR) Ubiquiti airFiber 60 GHz Radio System, 1.8 Gbps Throughput, 12km Range, True Duplex Gigabit Performance, Built In Bluetooth Management, 2Yr Warr
- SKU:
- AF60-LR
- MPN:
- AF60LR
- Availability:
- Not available
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Product Description

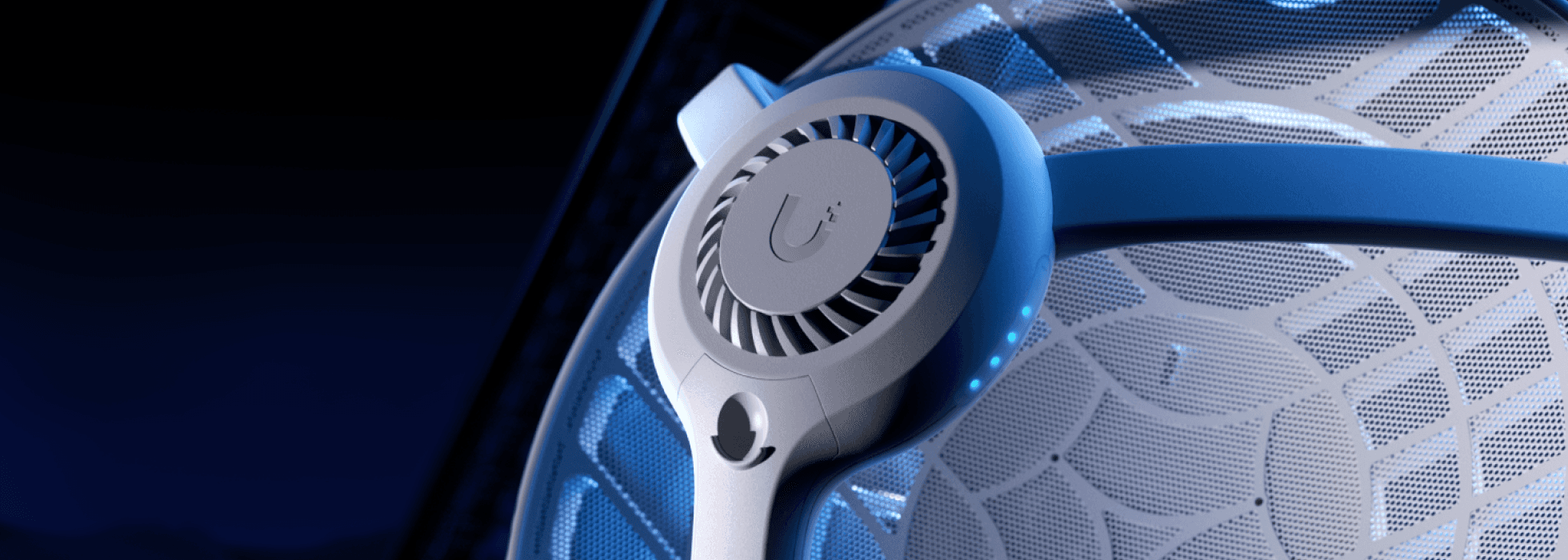

Long-range 60 GHz PtP radio system powered by Wave Technology.
12+ km link range
2 Gbps max. throughput
(1) GbE RJ45 port
Precision alignment mount
Integrated GPS & Bluetooth
Note . This product should be purchased in pairs in order to form links.
Technical Details
| Mechanical | |
|---|---|
| Dimensions | 413 x 360 mm (16.3 x 14.2") |
| Weight | Without mount: 1.5 kg (3.3 lb) With mount: 2.7 kg (6 lb) |
| Enclosure material | Aluminum, UV stabilized polycarbonate |
| Mount material | Galvanized steel |
| Mounting | Precision alignment kit (included) Pole compatibility: 25.4 to 76.2 mm (1 to 3") |
| Wind loading | 420 N at 200 km/h (94.4 lbf at 125 mph) |
| Hardware | |
| Processor | Quad-Core ARM® Cortex® A7 |
| Memory | 256 MB DDR3 |
| Networking interface | (1) GbE RJ45 port |
| Max. power consumption | 22W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44-54V DC only |
| Power supply | 48V DC, 0.65A gigabit PoE adapter (Included) |
| Supported voltage range | 44-54V DC 22-27V DC |
| GPS | Yes |
| RF connections | Internal |
| ESD/EMP protection | Air/contact: ± 24kV |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating mode | PtP only |
| Ubiquiti specific features | Wave technology, discovery utility |
| Network | Bridge mode |
| Services | UISP, ping watchdog, NTP client |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Software management | Bluetooth management for easy setup over UISP app WEB UI |
| Minimum software requirements | Any modern web browser/iOS or Android based smartphone |
| System | |
| Max. throughput | 1.95 Gbps |
| Max. range | 12+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57-71 Ghz * Depends on regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 1.6° Elevation: 3 dB 1.6° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application |
| Ethernet | Flashing blue: Ethernet activity |
| GPS | Blue: receiving at least (4) GPS satellite signals |
| 60G | Blue: active connection |
