Ubiquiti (LTU-Rocket) Ubiquiti Point-to-MultiPoint (PtMP) 5GHz, Functions in PtMP Environment w/ LTU-PRO/LTU-LITE/LTU-LR as Clients, 2Yr Warr

Write a Review
SKU:
LTU-Rocket
MPN:
LTURocket
Availability:
In Stock
Shipping:
Calculated at Checkout
MSRP: $867.90
$814.17
Inc. GST
MSRP: $789.00
$740.15
Ex. GST
— You save $53.73

Frequently bought together:

Description

Product Description

5 GHz PtMP LTU BaseStation Radio, functions in a PtMP environment using the LTU Pro, LTU Lite, or LTU LR as Clients.

toggles Integrated 5 GHz advanced filtering performance

5ghz_radio 900+ Mbps throughput*

connection 100+ client capacity

radios Dedicated spectral analysis radio

locate Integrated GPS sync

Note. Compatible with LTU devices only.

*FW version 2.3.0 and later.

Technical Details

Mechanical
Dimensions 224 x 82 x 48mm (8.8 x 3.2 x 1.9")
Weight 468 g (1 lb)
Enclosure material Diecast aluminum, polycarbonate
Mount material Metal, polycarbonate
Mounting Integrated pole mount (Kit included) GPS pole mount (Kit included) Rocket mount compatible
Weatherproofing IP67
Hardware
Networking interface (2) GbE RJ45 ports
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-) or (1, 2+; 3, 6-)
Power supply 24V, 1A gigabit PoE adapter (Included)
Supported voltage range 18-54V DC
Max. power consumption 24W
RF connections (2) RP-SMA weatherproof (CH0, CH1) (1) SMA weatherproof (GPS)
GPS Yes
GPS antenna External magnetic base
Button Factory reset
Ambient operating temperature -40° to 55° C (-40° to 131° F)
Certifications FCC
Software
Mode PtMP BaseStation radio
Services SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation
Auto distance adjustment Yes
Auto power adjustment Yes
Security Yes
Statical reporting Yes
Management interface Bluetooth management for easy setup over UISP App WEB UI
Minimum software requirements Any modern web browser iOS or Android based smartphone
System
Maximum throughput 900+ Mbps* *FW version 2.3.0 and later.
Packets per second 2+ million
Supported clients count 100+
Maximum range 100+ km* * Throughput and range values may vary depending on the environmental conditions.
Encryption WPA2-PSK (AES)
Uplink/Downlink ratio 25/75, 33/67, 50/50
RF
Operating frequency* US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 Worldwide 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz 4800 - 6200 MHz *Depends on regulatory region.
Max. conducted TX power 29 dBm
Channel bandwidth 10/20/30/40/50/60/80/100 MHz* selectable Programmable uplink and downlink duty cycles *FW version 2.3.0 and later.
Management radio 2400 - 2483.5 MHz

Product Details

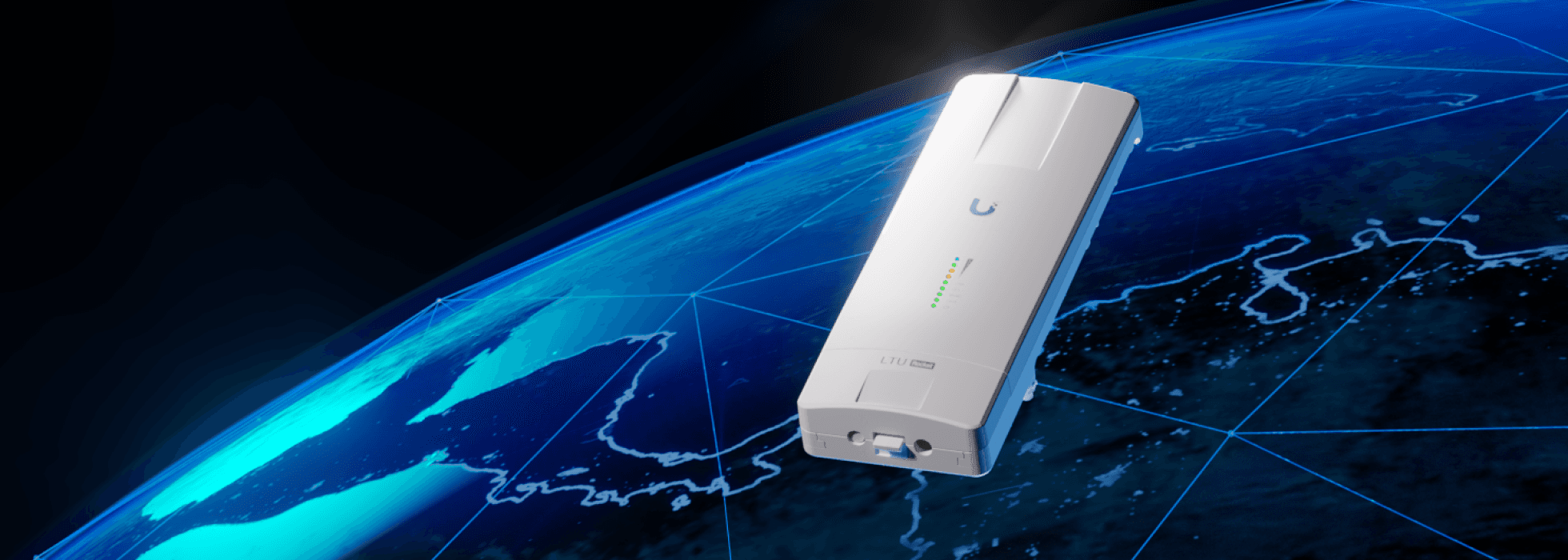

LTU Rocket
