Ubiquiti
Ubiquiti (U7-Pro) Ubiquiti UniFi WiFi 7 AP, Ceiling-mount, AP 6 GHz Support, 2.5 GbE Uplink, 9.3 Gbps Over-the-air Speed, PoE+ Power, 300+ Connect Device, 2Yr Warr
- SKU:
- U7-Pro
- MPN:
- U7Pro
- Availability:
- In Stock
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Product Description

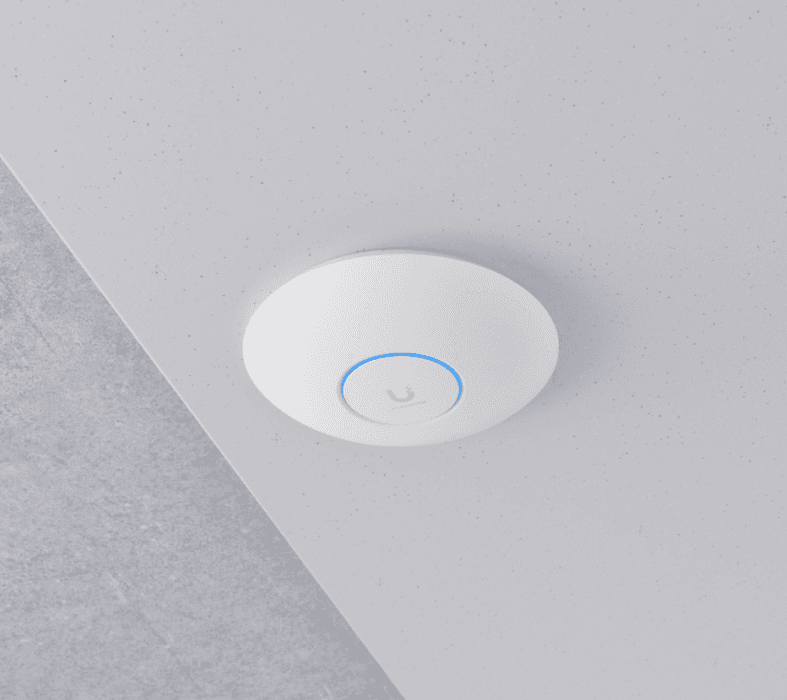

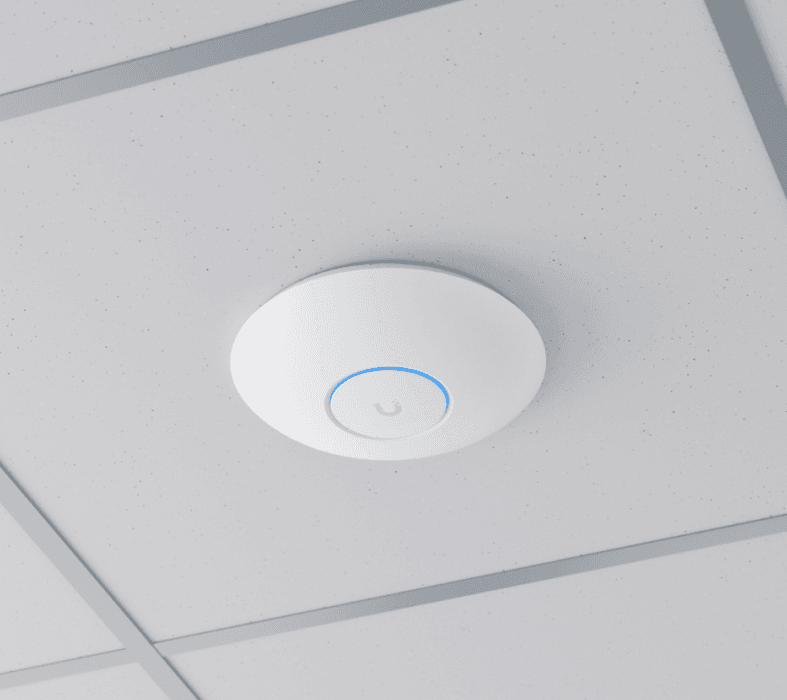

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.
WiFi 7 with 6 GHz support
6 spatial streams
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink
Note. 6 GHz operation is supported in these countries . Multi-Link Operation (MLO) capability is coming soon and will be provided via software update.
Technical Details
| Mechanical | ||
|---|---|---|
| Dimensions | 206 x 46 mm (8.1 x 1.8") | |
| Weight | 680 g (1.5 lb) | |
| Enclosure material | Polycarbonate, metal | |
| Mount material | Stainless steel (SUS304), galvanized steel (SGCC) | |
| Hardware | ||
| Networking interface | (1) 1/2.5 GbE RJ45 port | |
| Management interface | Ethernet | |
| Power method | PoE+ | |
| Power supply | UniFi PoE switch | |
| Supported voltage range | 44-57V DC | |
| Max. power consumption | 21W | |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 22 dBm 26 dBm 23 dBm | |
| MIMO 2.4 GHz 5 GHz 6 GHz | 2 x 2 2 x 2 2 x 2 | |
| Throughput rate 2.4 GHz 5 GHz 6 GHz | 688 Mbps 2882 Mbps 5765 Mbps | |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | 4 dBi 6 dBi 5.8 dBi | |
| LEDs | White/blue | |
| Button | Factory reset | |

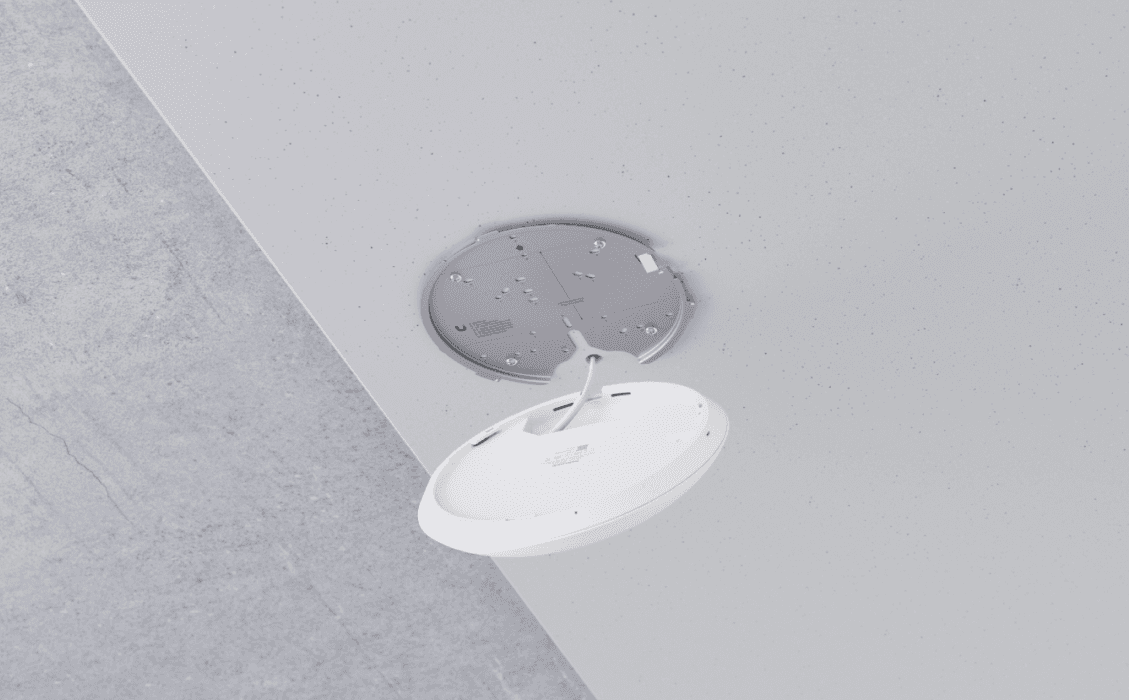

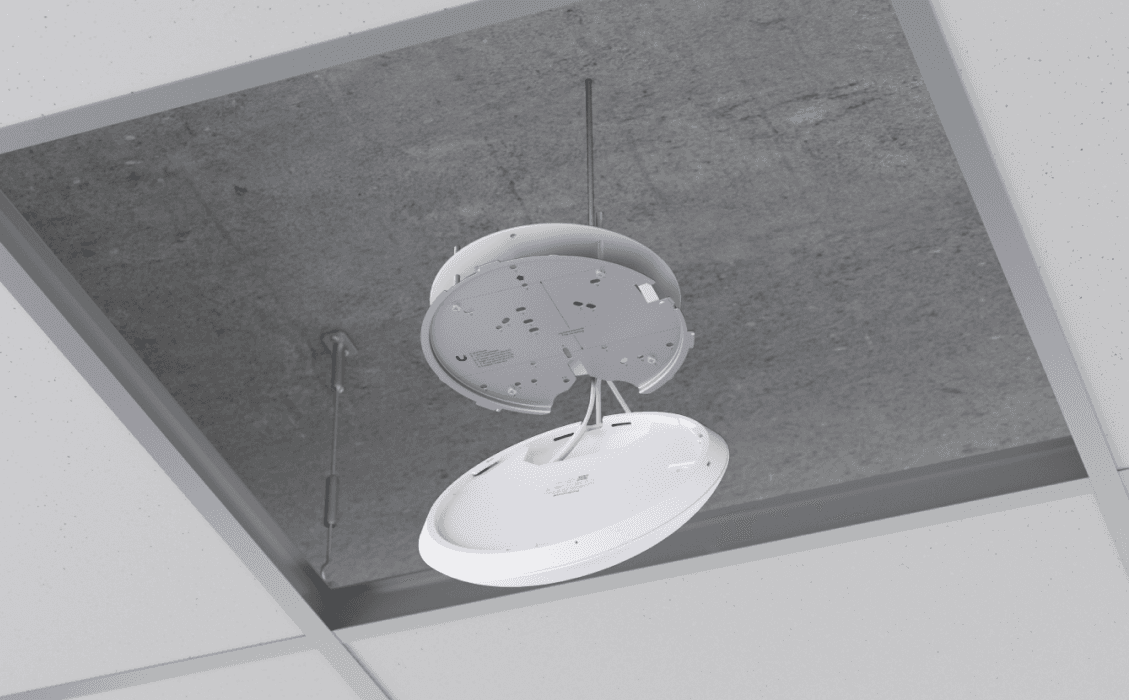

| Mounting | Wall/ceiling (Included) | |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) | |
| Ambient operating humidity | 5 to 95% noncondensing | |
| Certifications | CE, FCC, IC | |
| Software | ||
| WiFi standards | 802.11a/b/g/n/ac/ax/be | |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) | |
| BSSID | 8 per radio | |
| VLAN | 802.1Q | |
| Advanced QoS | Per-user rate limiting | |
| Guest traffic isolation | Supported | |
| Concurrent clients | 300+ | |
| Supported Data Rates | ||
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) | |
| Application Requirements | ||
| UniFi Network | Version 8.0.26 and later | |
| UniFi OS | Version 3.2 and later |
Product Details
Deplyment
In the Box
Build Features
Product Video
