Ubiquiti (UAP-AC-IW) Ubiquiti UniFi AC In-Wall 802.11ac Access Point w/ Ethernet Ports, 2.4GHz @ 300Mbps, 5GHz @ 867Mbps, 1167Mbps Total, Range Up To 100m, 2Yr Warr

Write a Review
SKU:
UAP-AC-IW
MPN:
UAPACIW
Availability:
Not available
Shipping:
Calculated at Checkout
  • Ubiquiti (UAP-AC-IW) Ubiquiti UniFi AC In-Wall 802.11ac Access Point w/ Ethernet Ports, 2.4GHz @ 300Mbps, 5GHz @ 867Mbps, 1167Mbps Total, Range Up To 100m
  • Ubiquiti (UAP-AC-IW) Ubiquiti UniFi AC In-Wall 802.11ac Access Point w/ Ethernet Ports, 2.4GHz @ 300Mbps, 5GHz @ 867Mbps, 1167Mbps Total, Range Up To 100m, 2Yr Warr
  • Ubiquiti (UAP-AC-IW) Ubiquiti UniFi AC In-Wall 802.11ac Access Point w/ Ethernet Ports, 2.4GHz @ 300Mbps, 5GHz @ 867Mbps, 1167Mbps Total, Range Up To 100m, 2Yr Warr
  • Ubiquiti (UAP-AC-IW) Ubiquiti UniFi AC In-Wall 802.11ac Access Point w/ Ethernet Ports, 2.4GHz @ 300Mbps, 5GHz @ 867Mbps, 1167Mbps Total, Range Up To 100m, 2Yr Warr
  • Ubiquiti (UAP-AC-IW) Ubiquiti UniFi AC In-Wall 802.11ac Access Point w/ Ethernet Ports, 2.4GHz @ 300Mbps, 5GHz @ 867Mbps, 1167Mbps Total, Range Up To 100m, 2Yr Warr
  • Ubiquiti (UAP-AC-IW) Ubiquiti UniFi AC In-Wall 802.11ac Access Point w/ Ethernet Ports, 2.4GHz @ 300Mbps, 5GHz @ 867Mbps, 1167Mbps Total, Range Up To 100m, 2Yr Warr
MSRP: $207.90
$193.12
Inc. GST
MSRP: $189.00
$175.56
Ex. GST
— You save $14.78

Frequently bought together:

Description

Product Description

Wall-mounted WiFi 5 AP with 4 spatial streams and a built-in 2-port switch ideal for seamless coverage of smaller rooms.

WiFi 5

4 spatial streams

25 m² (300 ft²) coverage

250+ connected devices

Powered using PoE+

(2) GbE ports with (1) PoE output*

GbE uplink

*PoE output cannot be disabled.

Single Unit 5-Pack

Technical Details

Mechanical

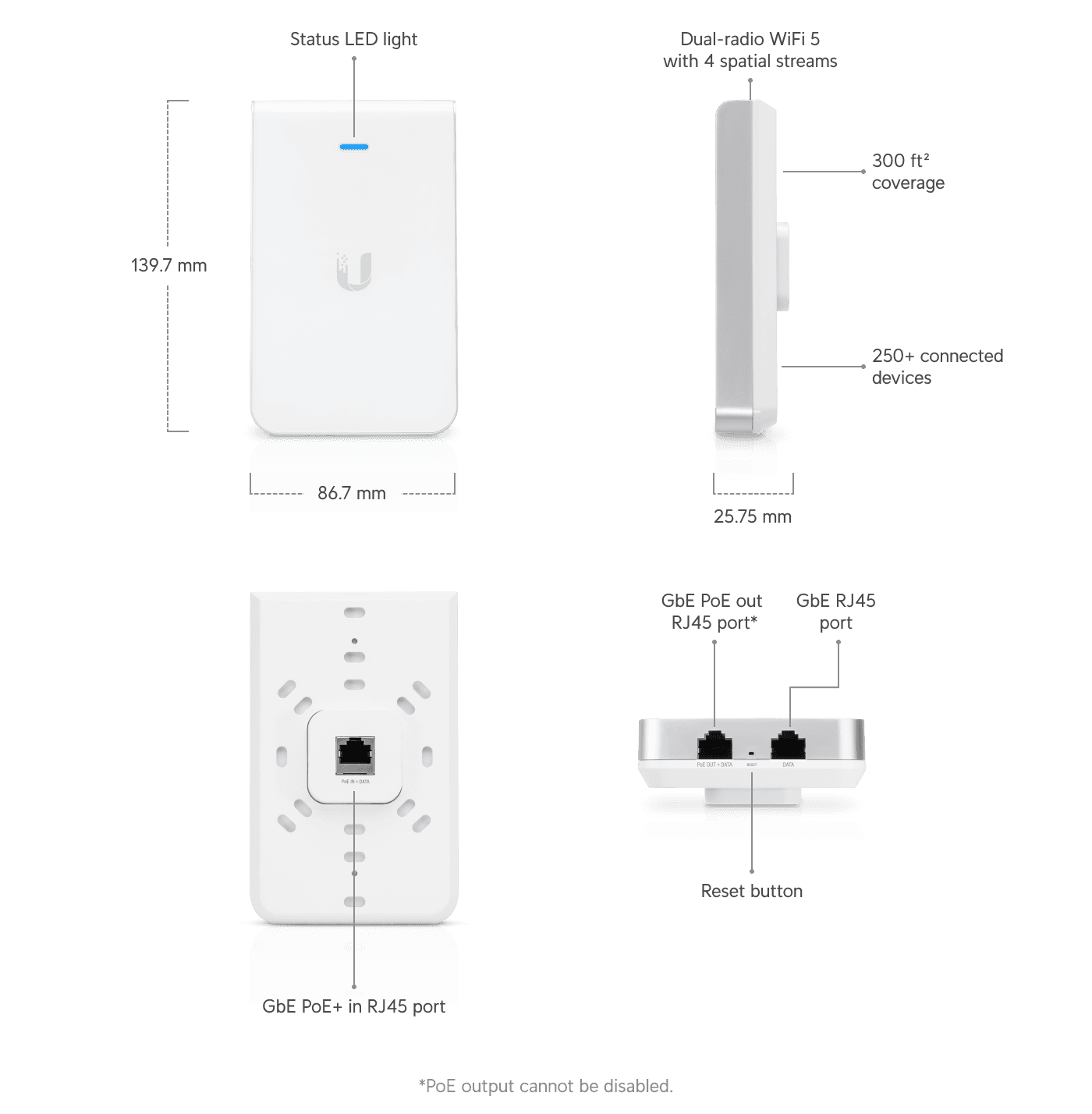

Dimensions 139.7 x 86.7 x 25.8 mm (5.5 x 3.4 x 1"")
Weight 200 g (6.4 oz)
Hardware
Networking interface (3) GbE RJ45 ports
Management interface Ethernet
PoE interface (1) PoE/PoE+ in (1) PoE out
Power method PoE PoE+ (Required for PoE passthrough)
Power supply UniFi PoE switch
PoE out 48V pass-through (Pins 1, 2+; 3, 6-)
Max. power consumption 7W (Excluding PoE output)
Max. PoE wattage per port by PSE 19W* * Requires PoE switch.
Max. TX power 2.4 GHz 5 GHz 6 GHz 20 dBm 20 dBm ‚¬œ

MIMO 2.4 GHz 5 GHz 6 GHz 2 x 2 2 x 2 ‚¬œ
Throughput rate 2.4 GHz 5 GHz 6 GHz 300 Mbps 867 Mbps ‚¬œ
Antenna gain 2.4 GHz 5 GHz 6 GHz 1 dBi 2 dBi ‚¬œ
Button Factory reset

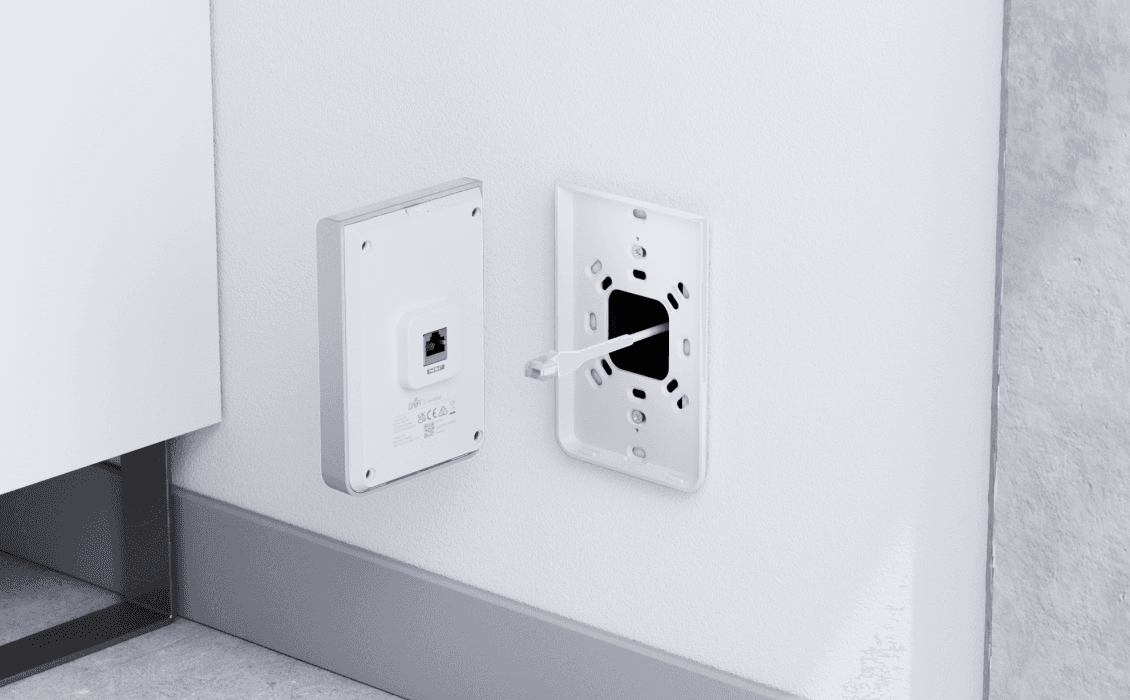

Mounting 1-Gang electrical wall box (Optional)
Ambient operating temperature -10 to 50° C (14 to 122° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11 a/b/g/n/r/k/v/ac
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Power save Supported
WMM Voice, video, best effort, and background
Concurrent clients 250+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 -MCS15, HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 -MCS9 NSS1/2, VHT 20/40/80)

Product Details

Access Point AC In-Wall

Access Point AC In-Wall

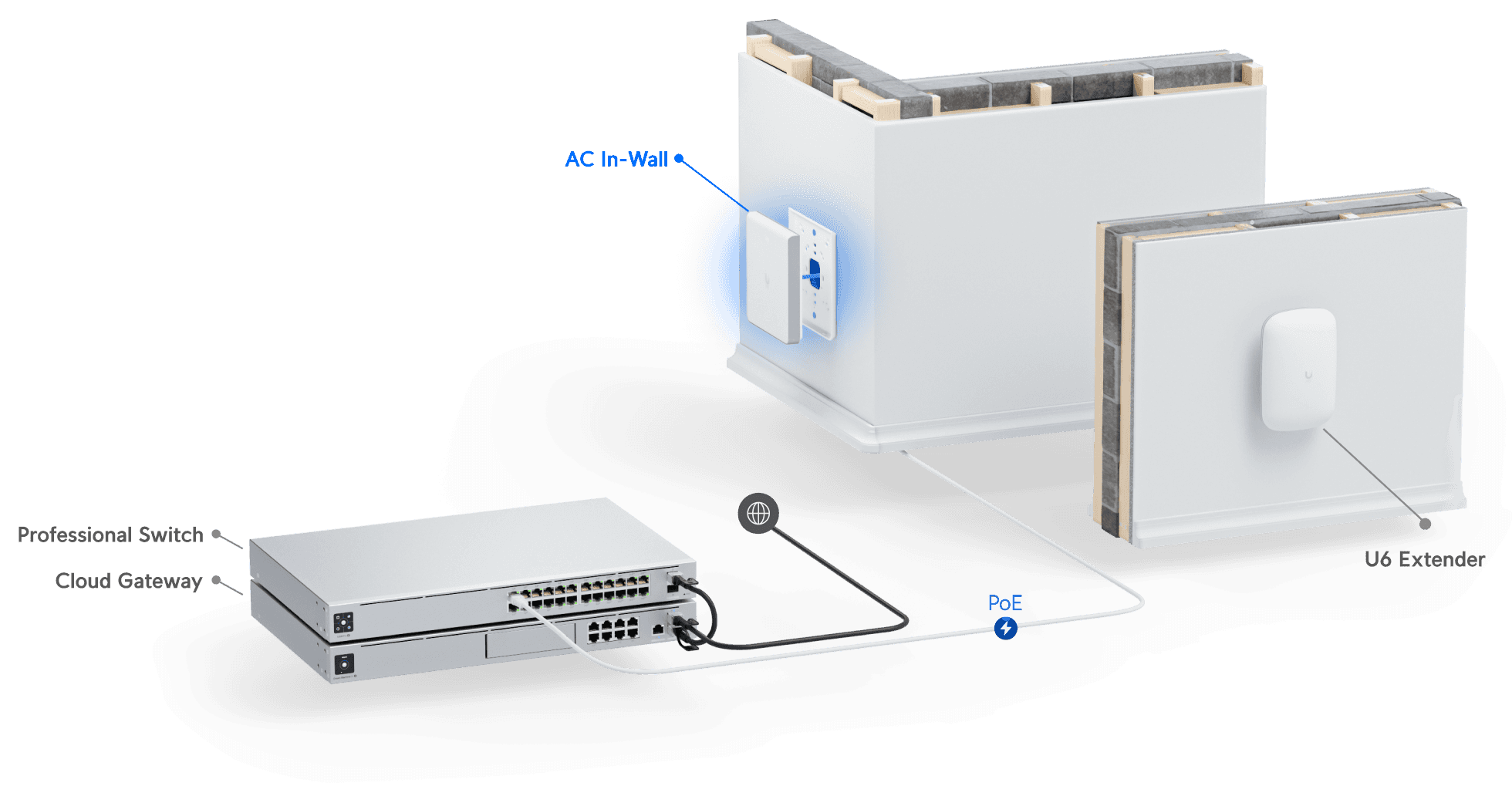

Product Deployment

Access Point AC In-Wall

Build Features

Access Point AC In-Wall

Installation Guide
