Ubiquiti (UAP-AC-LR) Ubiquiti UniFi AC Long Range Indoor Access Point, 2.4GHz @ 450Mbps, 5GHz @ 867Mbps, 1317Mbps Total, Range Up To 183m, 2Yr Warr

Write a Review
SKU:
UAP-AC-LR
MPN:
UAPACLR
Availability:
Please contact us for availability
  • Ubiquiti (UAP-AC-LR) Ubiquiti UniFi AC Long Range Indoor Access Point, 2.4GHz @ 450Mbps, 5GHz @ 867Mbps, 1317Mbps Total, Range Up To 183m
  • Ubiquiti (UAP-AC-LR) Ubiquiti UniFi AC Long Range Indoor Access Point, 2.4GHz @ 450Mbps, 5GHz @ 867Mbps, 1317Mbps Total, Range Up To 183m, 2Yr Warr
  • Ubiquiti (UAP-AC-LR) Ubiquiti UniFi AC Long Range Indoor Access Point, 2.4GHz @ 450Mbps, 5GHz @ 867Mbps, 1317Mbps Total, Range Up To 183m, 2Yr Warr
  • Ubiquiti (UAP-AC-LR) Ubiquiti UniFi AC Long Range Indoor Access Point, 2.4GHz @ 450Mbps, 5GHz @ 867Mbps, 1317Mbps Total, Range Up To 183m, 2Yr Warr
  • Ubiquiti (UAP-AC-LR) Ubiquiti UniFi AC Long Range Indoor Access Point, 2.4GHz @ 450Mbps, 5GHz @ 867Mbps, 1317Mbps Total, Range Up To 183m, 2Yr Warr
MSRP: $229.90
$215.69
Inc. GST
MSRP: $209.00
$196.08
Ex. GST
— You save $14.21

Frequently bought together:

Description

Product Description

Ceiling-mounted WiFi 5 AP with 5 spatial streams and extended signal range.

wifi5 WiFi 5

streams 5 spatial streams

floorplan 185 m² (2,000 ft²) coverage

connection 250+ connected devices

poe Powered using PoE*

uplink GbE uplink

*PoE power adapter included with single unit purchases.

Single Unit 5-Pack

Technical Details

Mechanical
Dimensions 175.7 x 43.2 mm (6.9 x 1.7")
Weight Without mount: 240 g (8.5 oz) With mount: 315 g (11.1 oz)
Hardware
Networking interface (1) GbE RJ45 port
Management interface Ethernet
Power method PoE Passive PoE, 24V (Pairs 4, 5+; 7, 8 return)
Power supply UniFi PoE switch 24V, 0.5A Gigabit PoE adapter* *5-packs do not come with PoE adapters.
Max. power consumption 6.5W
Max.TX power 2 GHz 5 GHz 6 GHz 24 dBm 22 dBm
MIMO 2.4 GHz 5 GHz 6 GHz 3 x 3 2 x 2
Throughput rate 2.4 GHz 5 GHz 6 GHz 450 Mbps 867 Mbps
Antenna gain 2.4 GHz 5 GHz 6 GHz 3 dBi 3 dBi
Button Factory reset
Mounting Wall, ceiling (Included)
Ambient operating temperature -10 to 70° C (14 to 158° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11 a/b/g/n/r/k/v/ac
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Power save Supported
WMM Voice, video, best effort, and background
Concurrent clients 250+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

Product Details

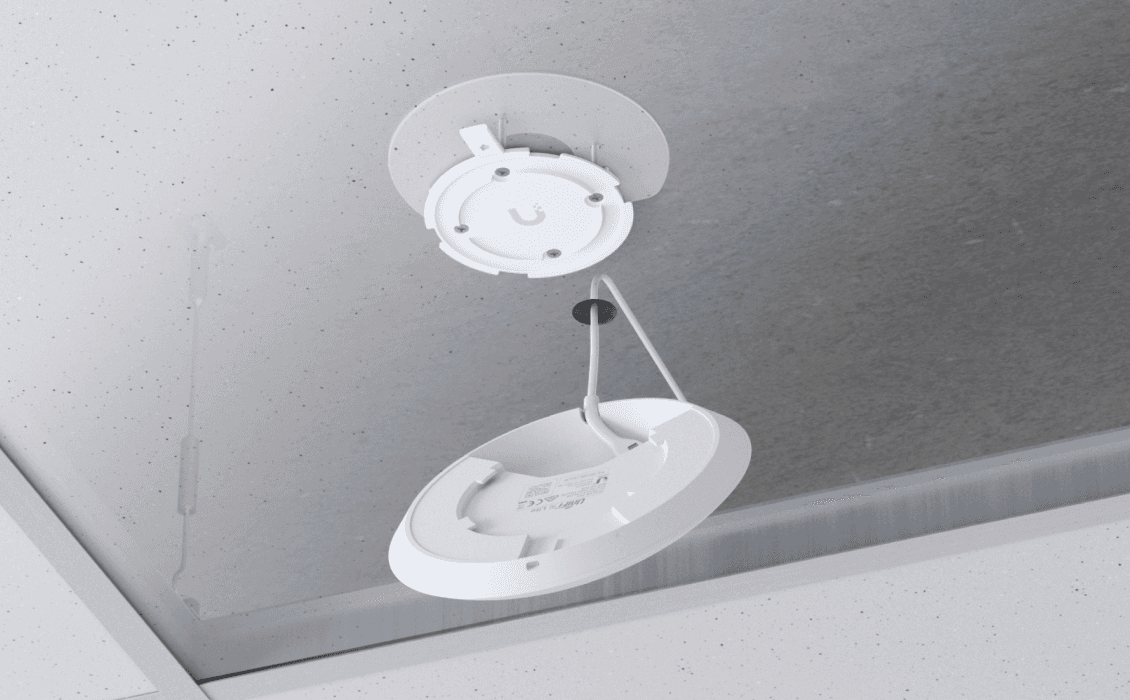

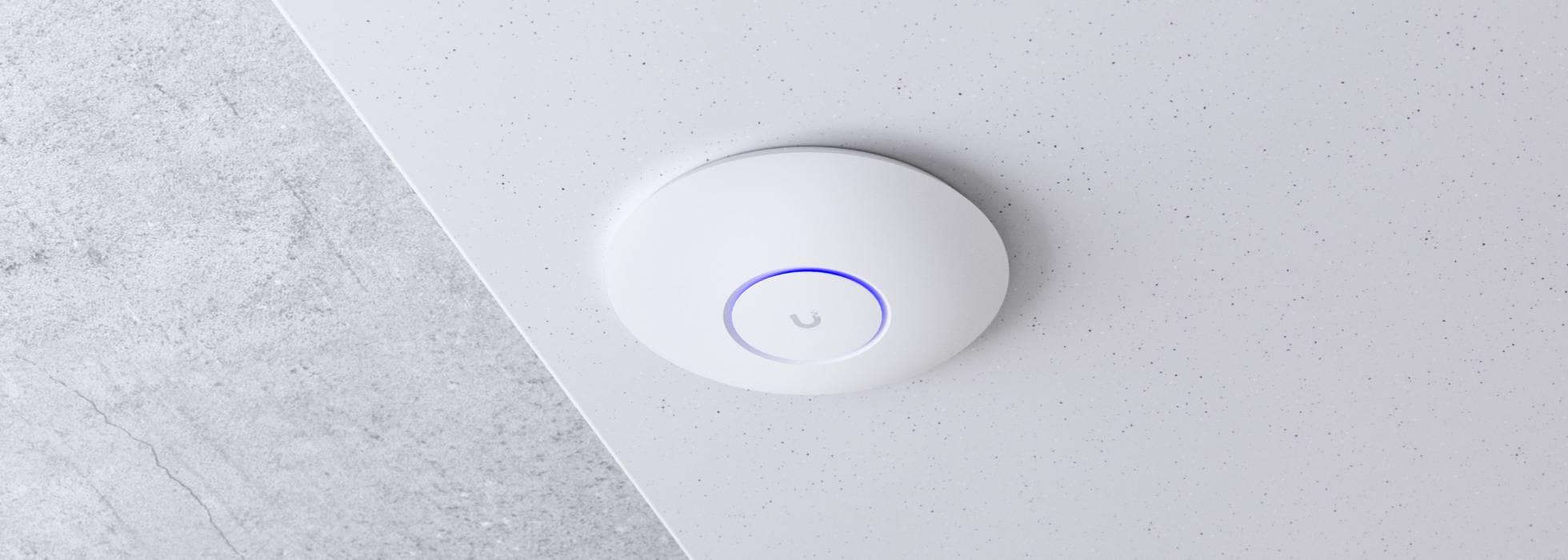

Access Point AC Long-Range

Access Point AC Long-Range

Access Point AC Long-Range

Deplyment

Deployment

Build Features

Build Features

Installation Guide
