Ubiquiti (UAP-AC-M) Ubiquiti UniFi AC Mesh Outdoor Access Point, 2.4GHz @ 300Mbps, 5GHz @ 867Mbps, 1167Mbps Total, Dual Omni Antennas, 2Yr Warr

Write a Review
SKU:
UAP-AC-M
MPN:
UAPACM
Availability:
In Stock
Shipping:
Calculated at Checkout
  • Ubiquiti (UAP-AC-M-AU) Ubiquiti UniFi AC Mesh Outdoor Access Point, 2.4GHz @ 300Mbps, 5GHz @ 867Mbps, 1167Mbps Total, Dual Omni Antennas
  • Ubiquiti (UAP-AC-M) Ubiquiti UniFi AC Mesh Outdoor Access Point, 2.4GHz @ 300Mbps, 5GHz @ 867Mbps, 1167Mbps Total, Dual Omni Antennas, 2Yr Warr
  • Ubiquiti (UAP-AC-M) Ubiquiti UniFi AC Mesh Outdoor Access Point, 2.4GHz @ 300Mbps, 5GHz @ 867Mbps, 1167Mbps Total, Dual Omni Antennas, 2Yr Warr
  • Ubiquiti (UAP-AC-M) Ubiquiti UniFi AC Mesh Outdoor Access Point, 2.4GHz @ 300Mbps, 5GHz @ 867Mbps, 1167Mbps Total, Dual Omni Antennas, 2Yr Warr
  • Ubiquiti (UAP-AC-M) Ubiquiti UniFi AC Mesh Outdoor Access Point, 2.4GHz @ 300Mbps, 5GHz @ 867Mbps, 1167Mbps Total, Dual Omni Antennas, 2Yr Warr
  • Ubiquiti (UAP-AC-M) Ubiquiti UniFi AC Mesh Outdoor Access Point, 2.4GHz @ 300Mbps, 5GHz @ 867Mbps, 1167Mbps Total, Dual Omni Antennas, 2Yr Warr
MSRP: $229.90
$214.43
Inc. GST
MSRP: $209.00
$194.94
Ex. GST
— You save $15.47

Frequently bought together:

Description

Product Description

Compact, indoor/outdoor WiFi 5 AP with 4 spatial streams and optional external antenna support for directional coverage.

wifi5 WiFi 5

streams 4 spatial streams

floorplan 140 m² (1,500 ft²) coverage

connection 250+ connected devices

poe Powered using PoE*

uplink GbE uplink

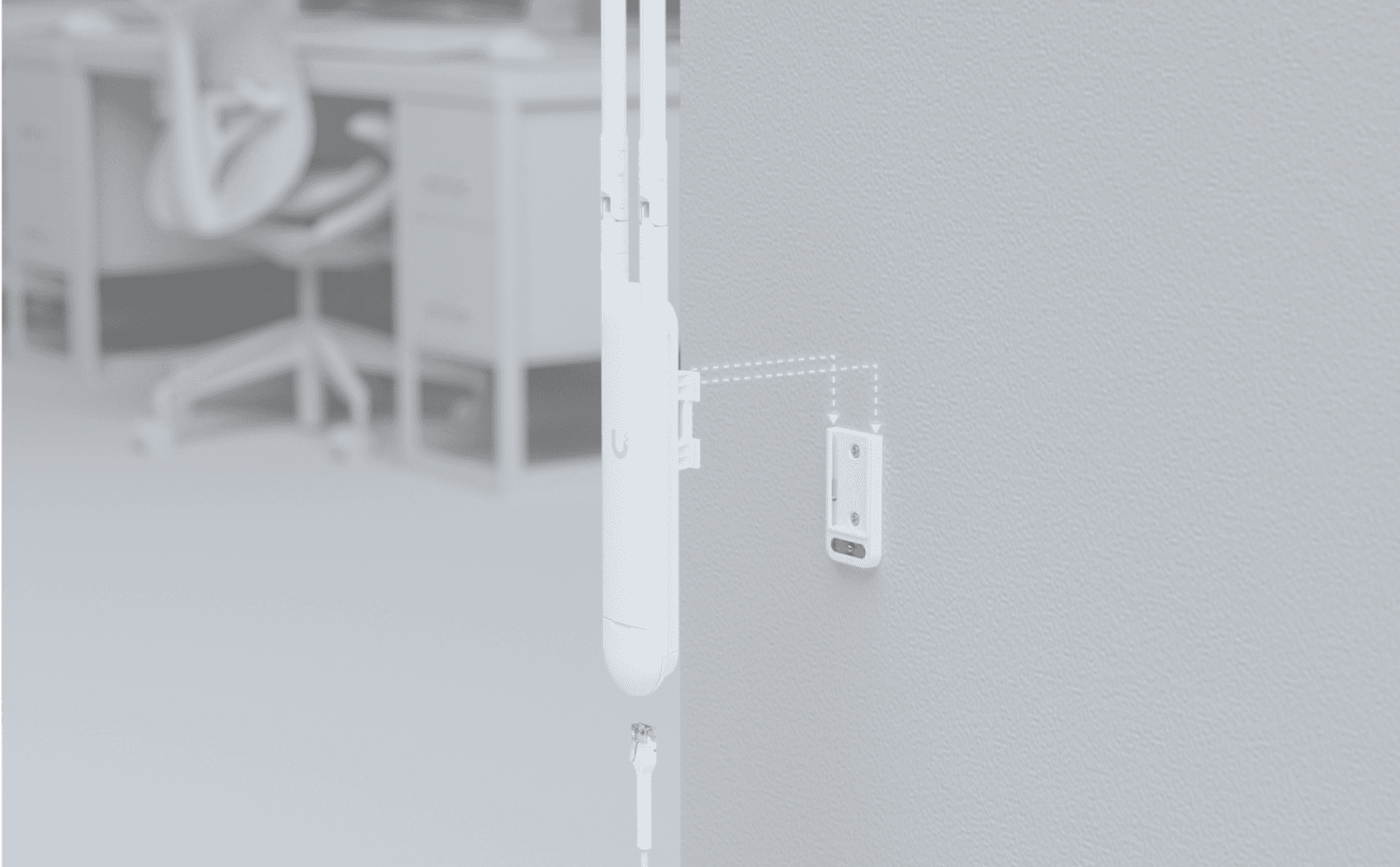

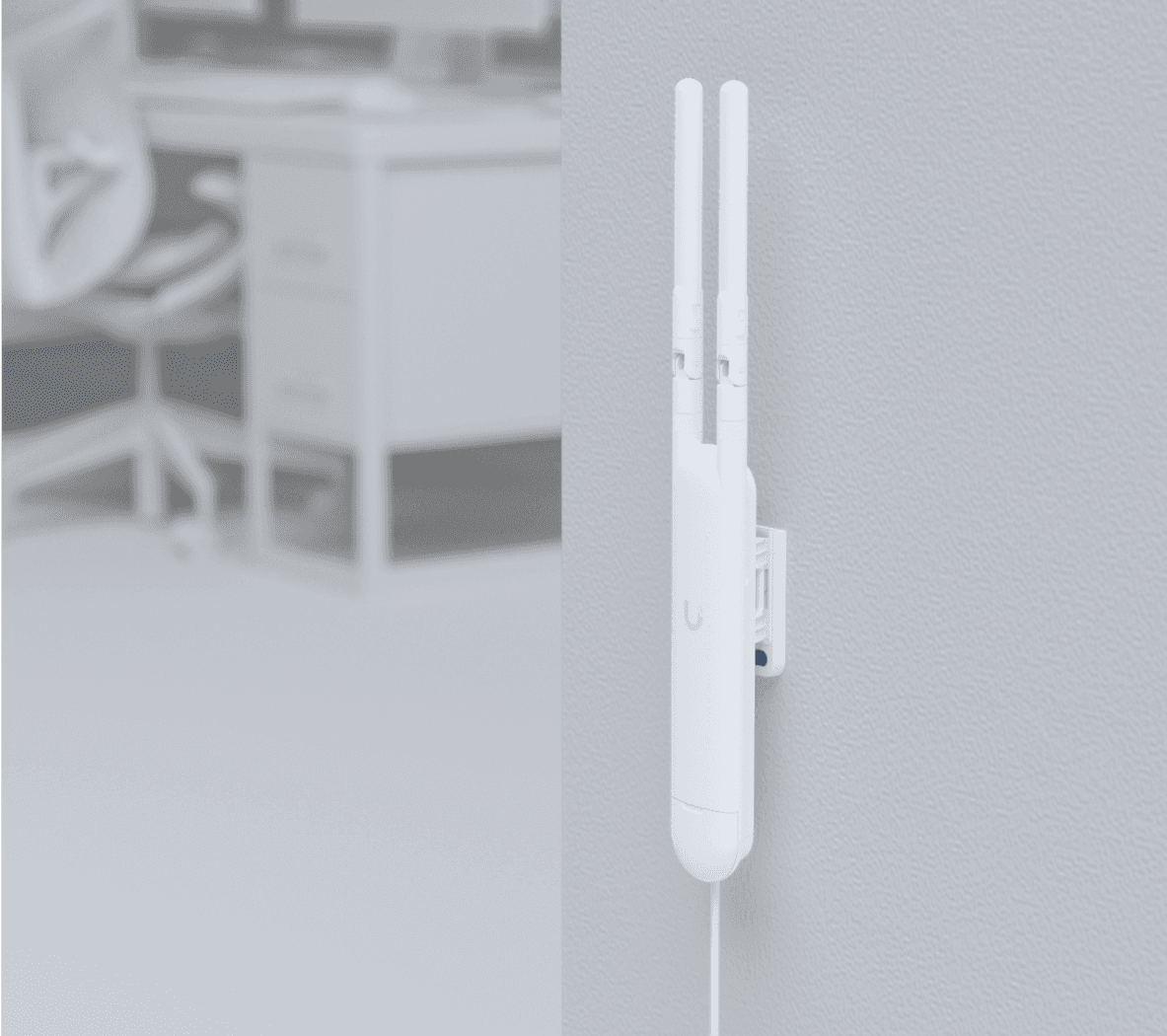

mount Versatile wall and pole mounting

sma_connector (2) RP-SMA connectors for optional external antennas**

waterdrop Weatherproof (outdoor exposed)

*PoE power adapter included with single unit purchase. **UMA-D external antenna accessory offers directional coverage.

Single Unit 5-Pack

Technical Details

Mechanical
Dimensions 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4")
Weight 152 g (5.4 oz)
Hardware
Networking interface (1) GbE RJ45 port
Management interface Ethernet Bluetooth
Power method PoE Passive PoE, 24V (Pairs 4, 5+; 7, 8 return)
Power supply Gigabit PoE adapter 24V, 0.5A* *5-packs do not come with PoE adapters.
Supported voltage range 44-57V DC
Max. power consumption 8.5W
Max. TX power 2.4 GHz 5 GHz 6 GHz 20 dBm 20 dBm
MIMO 2.4 GHz 5 GHz 6 GHz 2 x 2 2 x 2
Throughput rate 2.4 GHz 5 GHz 6 GHz 300 Mbps 867 Mbps
Antenna gain 2.4 GHz 5 GHz 6 GHz 3 dBi 4 dBi
Button Factory reset
Mounting Wall, pole, fast-mount (Included)
Ambient operating temperature -30 to 70° C (-22 to 158° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC, UKCA
Software
WiFi standards 802.11a/b/g/n/ac
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
VLAN 802.1Q
BSSID Up to 4 per radio
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Power save Supported
WMM Voice, video, best effort, and background
Concurrent clients 250+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

Product Details

Access Point AC Mesh

Access Point AC Mesh

Deplyment

Deployment

In the Box

In the Box

Build Features

Build Features

Installation Guide
