Ubiquiti
Ubiquiti (UAP-AC-SHD) Ubiquiti UniFi Wave 2 Dual Band 802.11ac AP with Security & BLE
- SKU:
- UAP-AC-SHD
- MPN:
- UAPACSHD
- Availability:
- In Stock
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Product Description

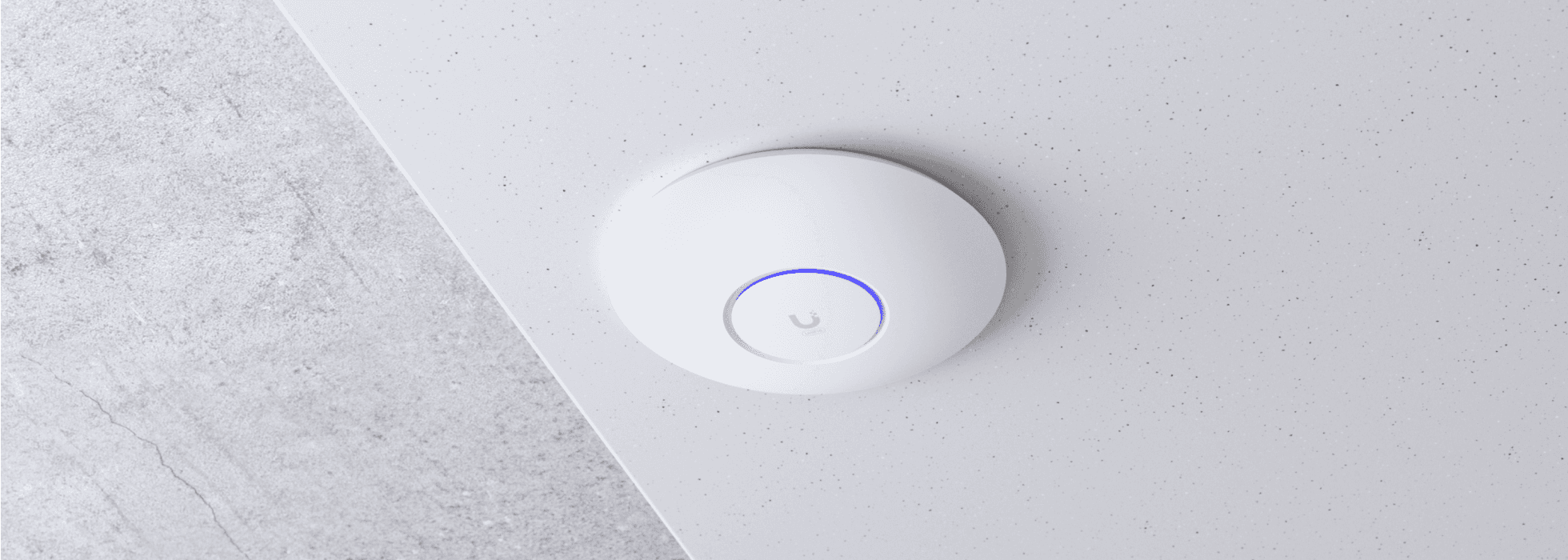

Ceiling-mounted WiFi 5 AP with 8 spatial streams designed to support high client density environments.
WiFi 5
8 spatial streams
140 m² (1,500 ft²) coverage
1,000+ connected devices
Powered using PoE+*
(2) GbE uplinks
*PoE power adapter included with single unit purchases.
Single Unit 5-Pack
Technical Details
| Mechanical | |
|---|---|
| Dimensions | 220 x 48.1 mm (8.7 x 1.9") |
| Weight | Without mount: 700 g (1.5 lb) With mount: 830 g (1.8 lb) |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| Power method | PoE+ |
| Power supply | UniFi PoE Switch* *5-packs do not come with PoE adapters. |
| Supported voltage range | 44-57 VDC |
| Max. power consumption | 20W |
| Max. TX power 2.4 GHz 5 GHz | 25 dBm 25 dBm |
| MIMO 2.4 GHz 5 GHz | 4 x 4 4 x 4 |
| Throughput rate 2.4 GHz 5 GHz | 800 Mbps 1733 Mbps |
| Antenna gain 2.4 GHz 5 GHz | 6 dBi 6 dBi |
| Button | Factory reset |

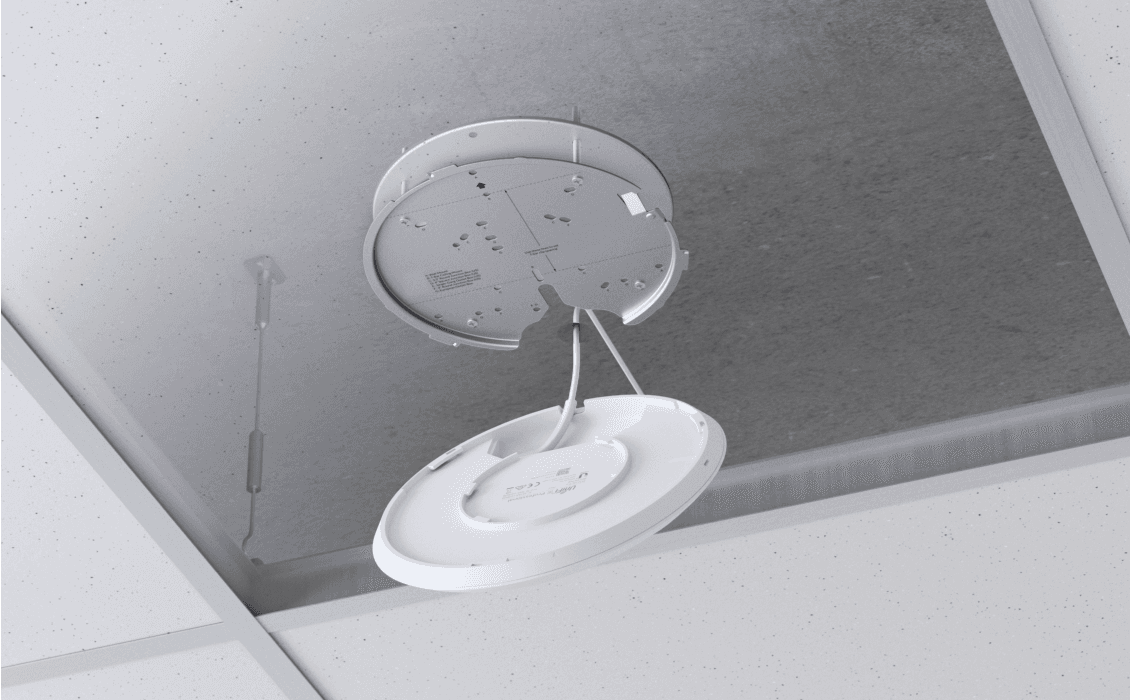

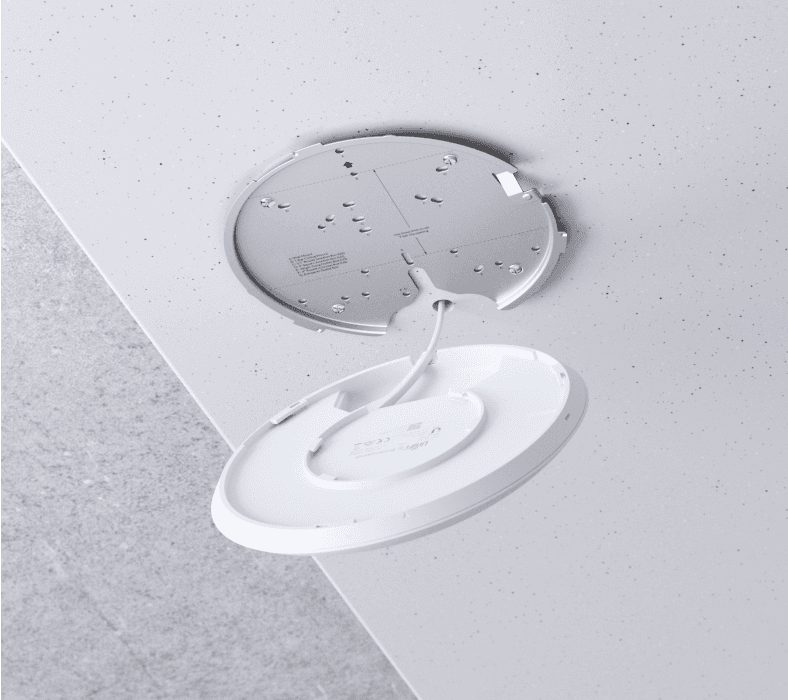

| Mounting | Wall/ceiling (Included) |
| Ambient operating temperature | -10 to 70° C (14 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, cULus |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ac-Wave2 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w (PMF) |
| BSSID | Up to 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Power save | Supported |
| Guest traffic isolation | Supported |
| Power save | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 1000+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
