Ubiquiti
Ubiquiti (UAP-nanoHD) Ubiquiti NanoHD Unifi Compact 802.11ac Wave2 MU-MIMO Enterprise Access Point, *PoE injector is not included, Upgrade from AC-PRO, 2 Yr Warr
- SKU:
- UAP-nanoHD
- MPN:
- UAPnanoHD
- Availability:
- Not available
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Product Description

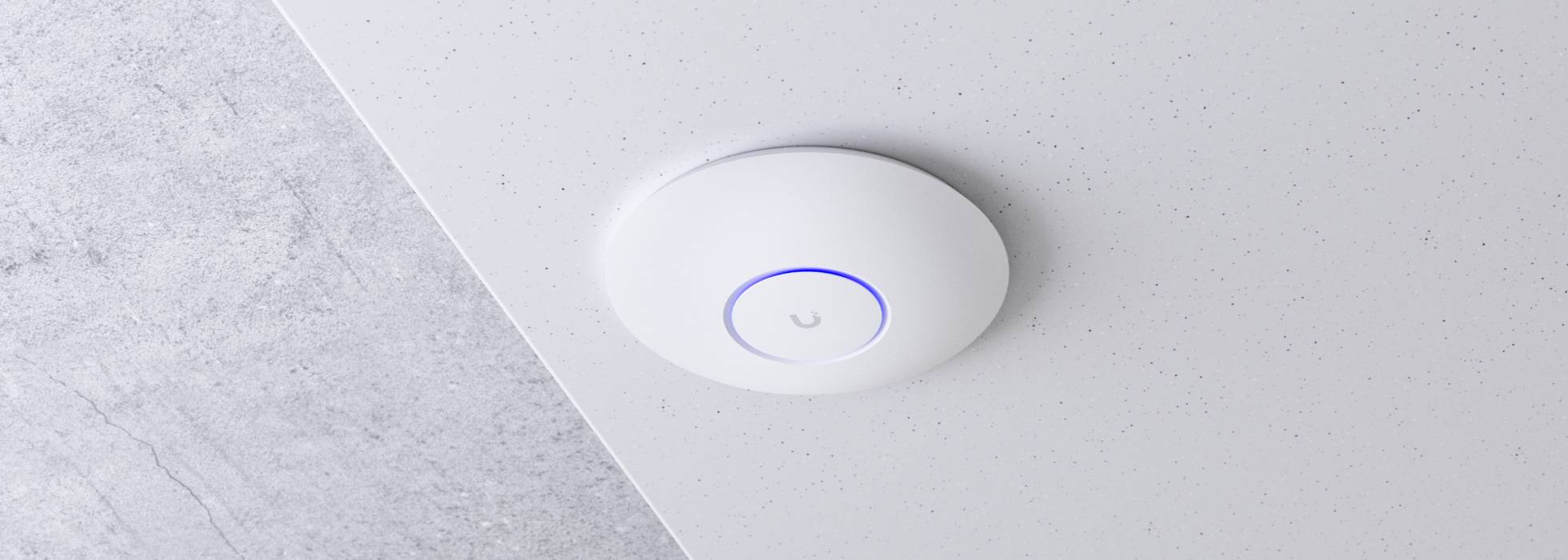

Compact, ceiling-mounted WiFi 5 AP with 6 spatial streams ideal for smaller offices.
WiFi 5
6 spatial streams
140 m² (1,500 ft²) coverage
200+ connected devices
Powered using PoE*
GbE uplink
*PoE power adapter included with single unit purchases.
Single Unit 3-Pack 5-Pack
Technical Details
| Mechanical | |
|---|---|
| Dimensions | 160 x 32.7 mm (6.3 x 1.3") |
| Weight | Without mount: 300 g (10.6 oz) With mount: 315 g (11.1 oz) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | PoE |
| Power supply | UniFi PoE Switch |
| Max. power consumption | 10.5W |
| Supported voltage range | 44-57V DC |
| Max. TX power 2.4 GHz 5 GHz | 23 dBm 26 dBm |
| MIMO < 2.4 GHz 5 GHz | 2 x 2 4 x 4 |
| Throughput rate 2.4 GHz 5 GHz | 300 Mbps 1733 Mbps |
| Antenna gain 2.4 GHz 5 GHz | 2.8 dBi 3 dBi |
| Button | (1) Factory reset |

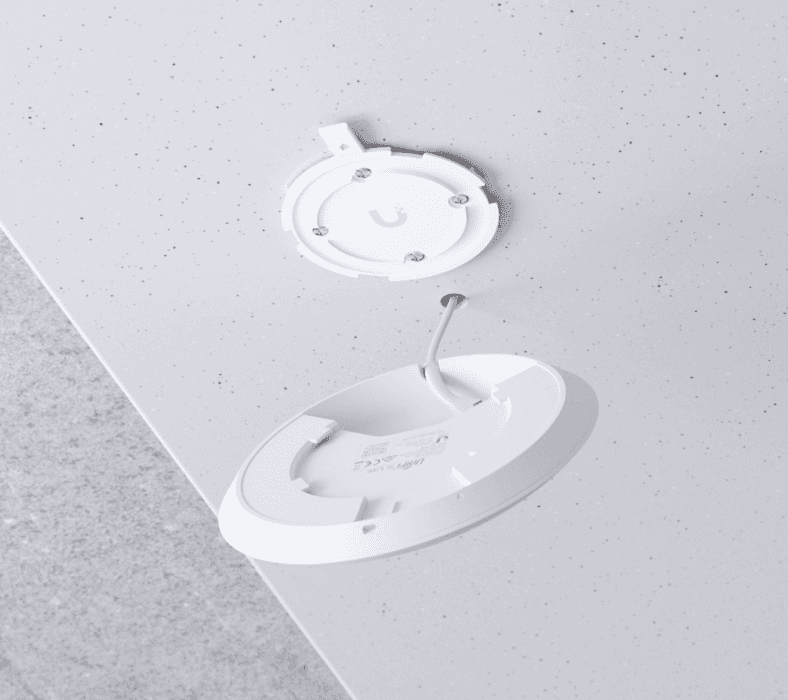

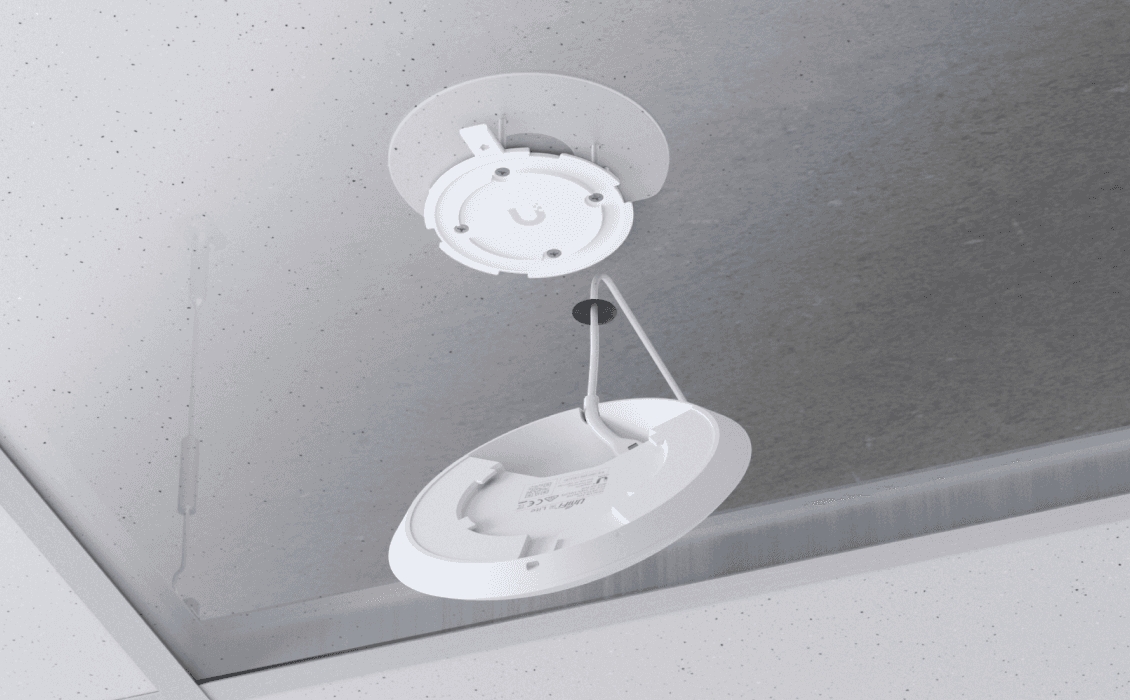

| Mounting | Wall/ceiling (Included) |
| Ambient operating temperature | -10 to 70° C (14 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, cULus |
| Software | |
| WiFi standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | Up to 8 per Radio |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 200+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160) |
