Ubiquiti (UDB-IoT) Ubiquiti Device Bridge IoT, Ultra-Compact Wireless Bridge IoT Devices, Integrated UniFi WiFi Auto-Link, Versatile Mounting, USB Type-C/4-Pin DC Socket

Write a Review
SKU:
UDB-IoT
MPN:
UDBIoT
Availability:
Please contact us for availability
  • Ubiquiti (UDB-IoT) Ubiquiti Device Bridge IoT, Ultra-Compact Wireless Bridge IoT Devices, Integrated UniFi WiFi Auto-Link, Versatile Mounting, USB Type-C/4-Pin DC Socket
  • Ubiquiti (UDB-IoT) Ubiquiti Device Bridge IoT, Ultra-Compact Wireless Bridge IoT Devices, Integrated UniFi WiFi Auto-Link, Versatile Mounting, USB Type-C/4-Pin DC Socket
  • Ubiquiti (UDB-IoT) Ubiquiti Device Bridge IoT, Ultra-Compact Wireless Bridge IoT Devices, Integrated UniFi WiFi Auto-Link, Versatile Mounting, USB Type-C/4-Pin DC Socket
  • Ubiquiti (UDB-IoT) Ubiquiti Device Bridge IoT, Ultra-Compact Wireless Bridge IoT Devices, Integrated UniFi WiFi Auto-Link, Versatile Mounting, USB Type-C/4-Pin DC Socket
$212.30
Inc. GST
$193.00
Ex. GST

Frequently bought together:

Description

Device Bridge IoT for Industrial Applications

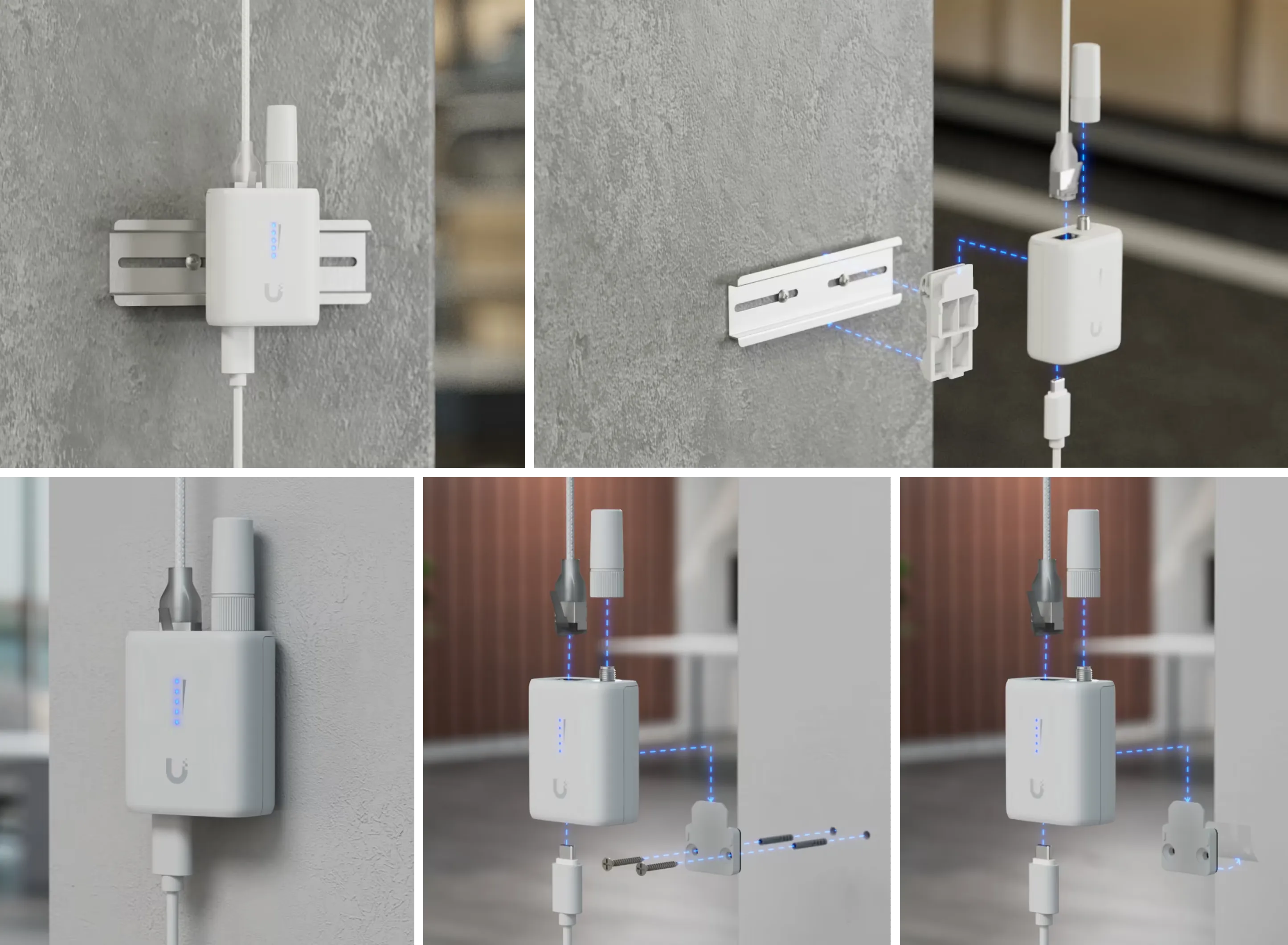

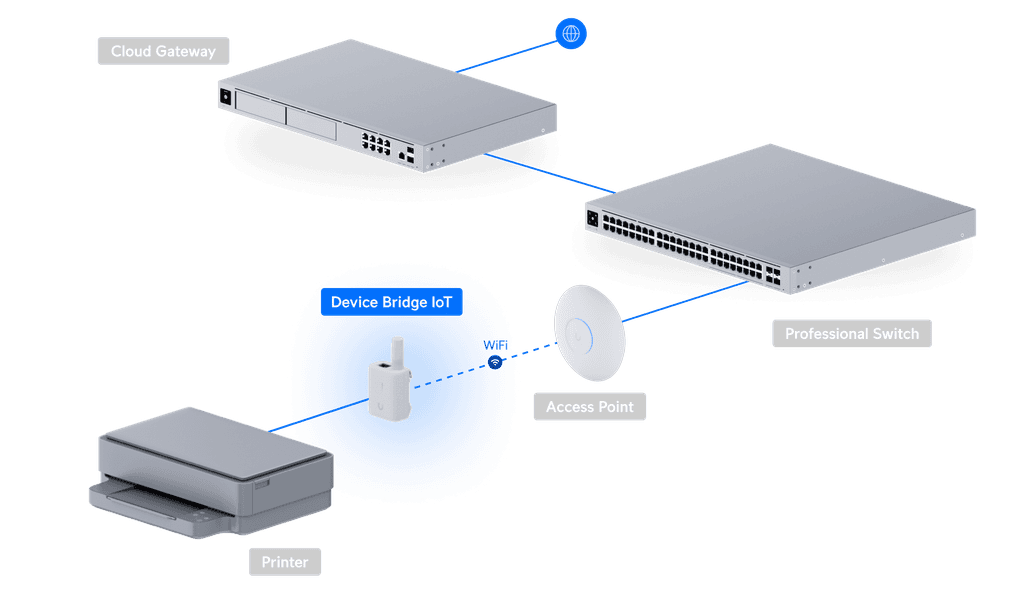

Compact, rugged, and versatile, the new Device Bridge IoT is designed specifically for industrial and IoT environments. It bridges any Ethernet device into a 2.4 GHz UniFi Wi-Fi network using Auto-Link, offering multiple power options and DIN-rail mounting for flexible installation. External antenna support ensures strong connectivity even in challenging signal conditions, or when a specialised antenna is required.

Device Bridge IoT

Deployment & Features





Technical Specs
Overview
Dimensions
Device: 63 x 44.5 x 25.5 mm (2.5 x 1.8 x 1")
With external antenna: 89 x 44.5 x 25.5 mm (3.5 x 1.8 x 1")
WiFi Standard
WiFi 4
Spatial Streams
2
Mounting Locations
Wall, DIN rail
Mounting
Included mount
Power Method
USB Type-C (5 V DC, 1 A)
4-pin DC (9–30 V DC)
Performance
MIMO - 2.4 GHz
2 x 2
Max. Data Rate - 2.4 GHz
300 Mbps (BW40)
Antenna Gain - 2.4 GHz
Internal: 4 dBi
External omni: 3 dBi
Max. TX Power - 2.4 GHz
20 dBm
Max. Conducted TX Power
20 dBm (Combined)
Supported Data Rates
802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
Wireless Security
WPA2 AES (Always On)
Hardware
Max. Power Consumption
2.3 W
Supported Voltage Range
USB-C: 5 V DC
Socket: 9–30 V DC
Networking Interface
(1) 10/100M RJ45 port
Antennas
(1) Internal antenna
(1) RP-SMA connector for external omni-antenna
Management
WiFi
Channel Bandwidth
20/40 MHz
Weight
Device: 45 g (1.6 oz)
With external antenna: 53 g (1.9 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Button
(1) Factory reset
LEDs - System
(4) Blue: signal
(1) White/blue: indicator
NDAA Compliant
Yes
Certifications
CE, FCC, IC
Ambient Operating Temperature
-10 to 50° C (14 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
