Ubiquiti

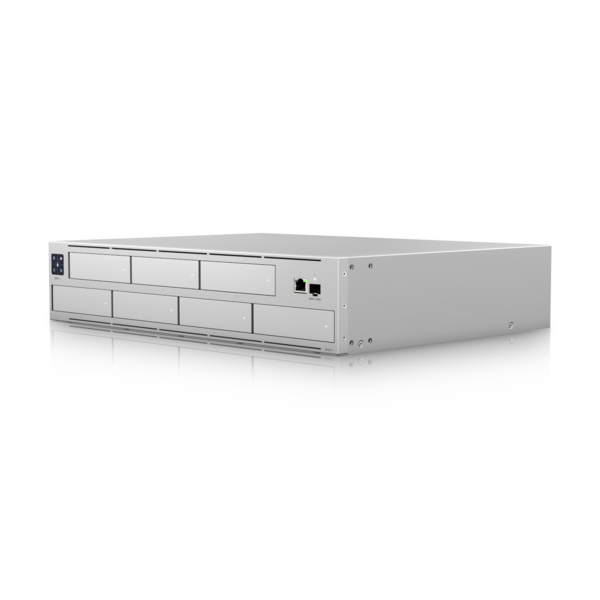

Ubiquiti (UNVR-PRO) Ubiquiti UniFi Protect Network Video Recorder - 7x 3.5' HD Bays - Unifi Protect Pre Installed - NHU-RPS Compatible, 2Yr Warr
- SKU:
- UNVR-PRO
- MPN:
- UNVRPRO
- Availability:
- Not available
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Product Description
A 2U-sized video recorder with (7) 2.5/3.5" HDD bays that can provide up to 60 days of storage for (20) 4K cameras or (60) Full HD cameras.
(7) 3.5" HDD / SSD support
(1) 10G SFP+ uplink and (1) GbE RJ45 port
Data protection with RAID storage technology
DC power backup-ready
1.3" touchscreen for management
Technical Details
| Mechanical | |
|---|---|
| Dimensions | 442 x 325 x 87 mm (17.4 x 12.8 x 3.4") |
| Weight | Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.5 kg (20.8 lb) |
| Enclosure material | SGCC steel |
| Mount material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (1) GbE RJ45 port (1) 1/10 GbE SFP+ port |
| RF interface | Bluetooth 4.1 |
| Power method | (1) Universal AC input, 100‚¬240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.91A |
| Power supply | AC/DC, internal, 200W |
| Supported voltage range | 100‚¬240V AC |
| Max. power consumption | 160W |
| Max. power budget for Drives | 135W |
| ESD/EMP protection | Air: ± 12kV, contact: ± 8kV |
| LCM display | (1) 1.3" touchscreen |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, CE, IC |
| LEDs | |
| System | (1) Power: blue/white Flashing white: bootup in progress Flashing blue: firmware upgrading Steady white: factory defaults, awaiting adoption Steady blue: device is adopted |
| Ethernet | Green: 1 Gbps Amber: 10/100 Mbps |
| SFP+ | White: 10 Gbps Green: 1 Gbps |
| HDD | White: disk detected Amber: disk error |
| RPS | Blue: ready |
Product Details
Deplyment
In the Box
Build Features
