Ubiquiti (USW-Enterprise-48-PoE) Ubiquiti Switch Enterprise 48-port PoE+ 48x2.5GbE Ports, For Wi-Fi 6 AP, 4x 10g SFP+ Ports For Uplinks, Managed Layer 3 Switch (720W), 2Yr Warr

Write a Review
SKU:
USW-Enterprise-48-PoE
MPN:
USWEnterprise48PoE
Availability:
In Stock
Shipping:
Calculated at Checkout
MSRP: $3,716.90
$3,330.82
Inc. GST
MSRP: $3,379.00
$3,028.02
Ex. GST
— You save $386.08

Frequently bought together:

Description

Product Description

A 48-port, Layer 3 switch with 2.5 GbE PoE+ output.

wired_plug (48) 2.5 GbE PoE+ ports

sfp (4) 10G SFP+ ports

poe 720W total PoE availability

power_support DC power backup-ready

layer3 Layer 3 switching

Technical Details

Mechanical
Dimensions 442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
Weight Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (48) 2.5 GbE RJ45 ports (4) 1/10G SFP+ ports
PoE interface (48) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 160 Gbps
Switching capacity 320 Gbps
Forwarding rate 238.095 Mpps
Power method (1) Universal input, 100-240V AC, 10A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A
Power supply AC/DC, internal, 100-240V, 10A Max.
Supported voltage range 100-240V AC
Max. power consumption 150W (Excluding PoE output)
Total available PoE 720W
Max. PoE wattage per port by PSE PoE+: 34.2W
Voltage range PoE mode PoE: 44-57V PoE+: 50-57V
Services SMB Layer 3 PoE GbE Switch
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" color touchscreen
Button Factory reset
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
LEDs
System Status
Ethernet Link/activity
SFP+ Link/activity
Application Requirements
UniFi Network Version 6.2.26 and later

Product Details

Switch Enterprise 48 PoE

Switch Enterprise 48 PoE

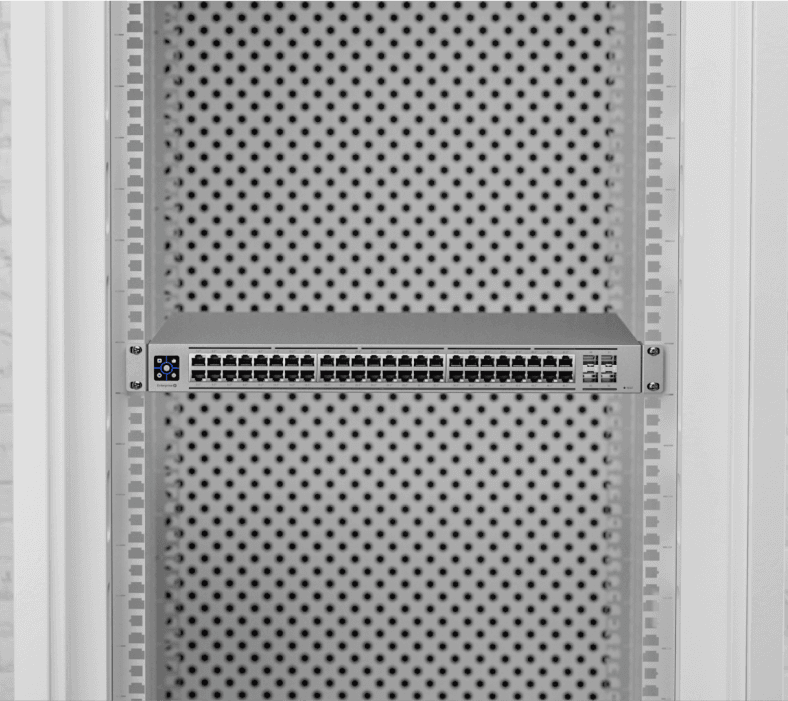

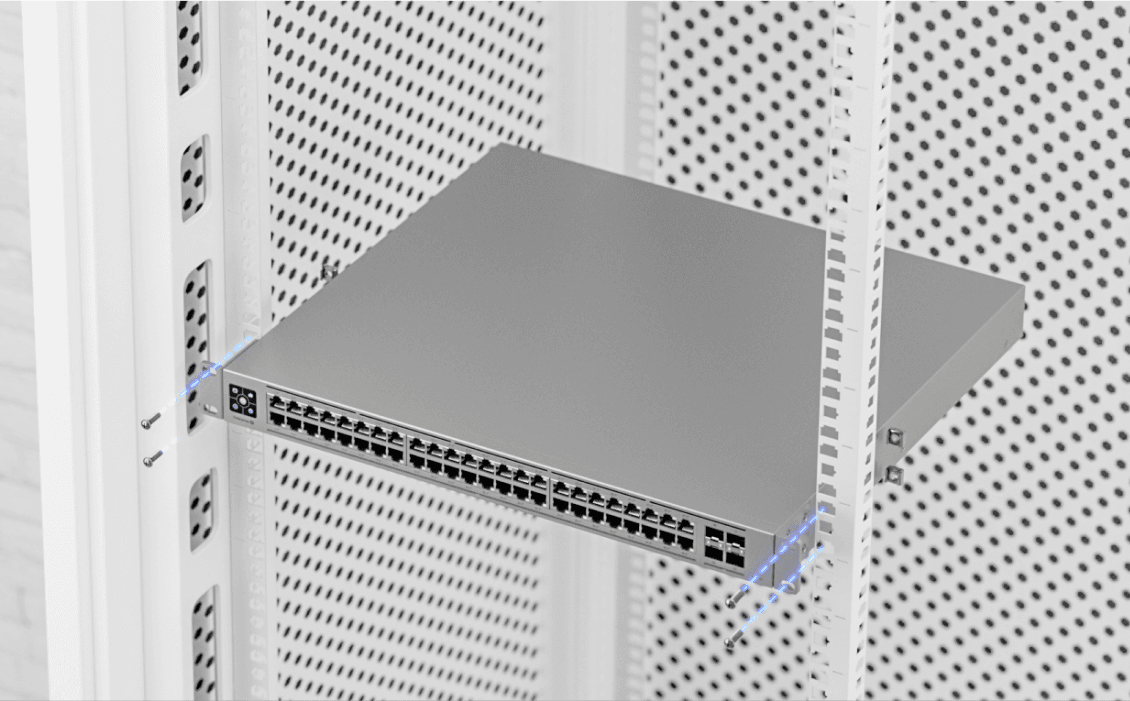

Deplyment

Deployment

In the Box

In the Box

Build Features

Build Features

Installation Guide
