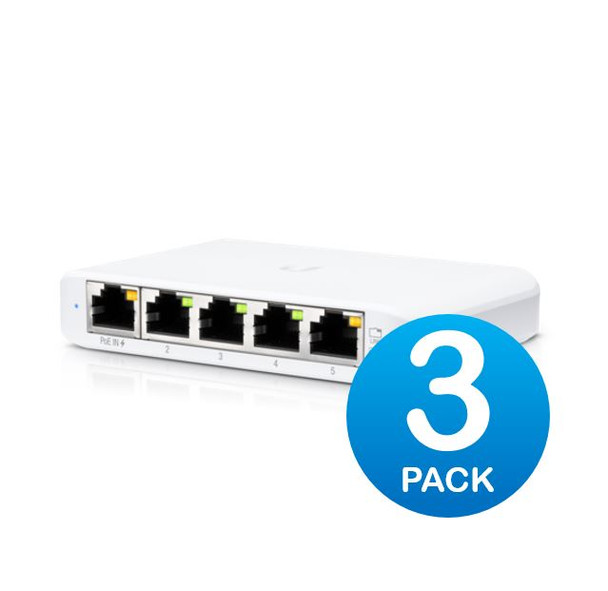

Ubiquiti (USW-Flex-Mini-3) Ubiquiti USW Flex Mini 3 Pack - Managed, UniFi, Layer 2 Gigabit Switch, 5x GbE RJ45 Ports, PoE (802.3af) or USB Type-C 5V 1A, No PSU, 2Yr Warr

Write a Review
SKU:
USW-Flex-Mini-3
MPN:
USWFlexMini3
Availability:
In Stock
Shipping:
Calculated at Checkout
MSRP: $207.90
$188.10
Inc. GST
MSRP: $189.00
$171.00
Ex. GST
— You save $19.80

Frequently bought together:

Description

Product Video

Product Description

A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.

rj45_port (4) GbE ports

poe (1) GbE PoE input port for power

usb_c Optional powering with included 5V, 1A USB-C adapter*

*Adapter included with single unit purchases.

Note. EU version comes with EU power plug only.

Single Unit3-Pack5-Pack

Technical Details

Technical Specifications

Mechanical
Dimensions 107 x 70 x 21 mm (4.2 x 2.8 x 0.8")
Weight 150 g (5.3 oz)
Enclosure material Polycarbonate
Hardware
Management interface Ethernet In-Band
Networking interface (5) GbE RJ45 ports
Total non-blocking throughput 5 Gbps
Switching capacity 10 Gbps
Forwarding rate 7.44 Mpps
Power method (1) USB Type C, 5V(1) PoE/PoE+, 44-57V DC, 0.05-0.04A
Power supply 5V, 1A power adapter**Only single-unit packages include the 5V, 1A USB-C power adapter.
Supported voltage range USB Type C: 4.7-5.3V DCPoE/PoE+: 44-57V DC
Max. power consumption 2.5W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Button Factory reset
Ambient operating temperature -5 to 45° C (23 to 113° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features Port isolationStorm controlPort mirroringMulticast / broadcast rate limitingFlow controlJumbo framesEgress rate limit
Layer 3 features -
LEDs
System Status
Ethernet Speed/link/activity
Application Requirements
UniFi Network Version 5.12.5 and later

Deplyment

Switch Flex Mini

Build Features

Switch Flex Mini

Whats in the Box

Switch Flex Mini

Installation Guide

Download Installation Guide
