Ubiquiti (USW-Flex-Mini) Ubiquiti USW Flex Mini, UniFi, Layer 2 Gigabit Switch, 5x GbE RJ45 Ports, Power Via PoE (802.3af) / USB Type-C 5V 1A, 2Yr Warr

Write a Review

$123.20

Inc. GST

$112.00

Ex. GST

Current Stock:

Frequently bought together:

Description

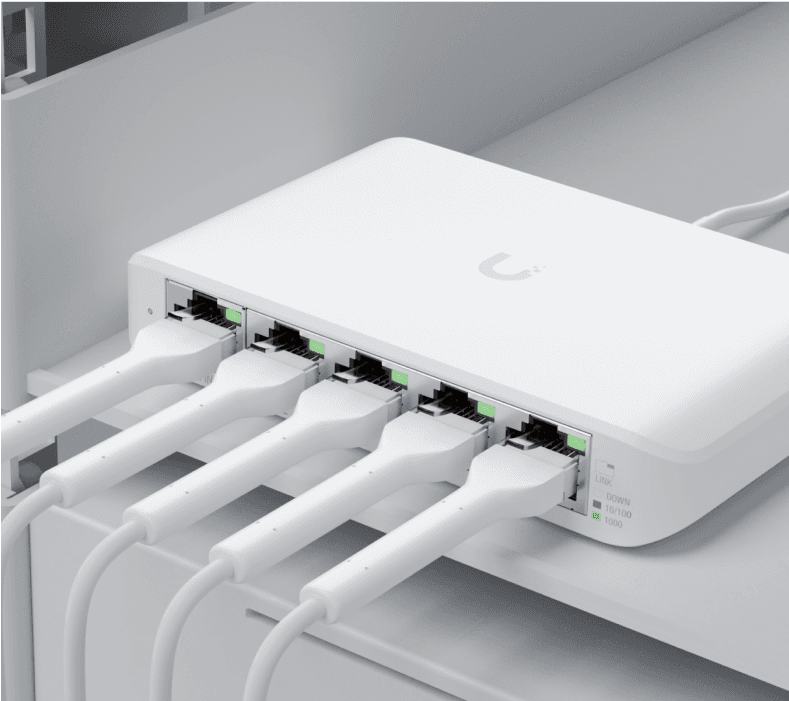

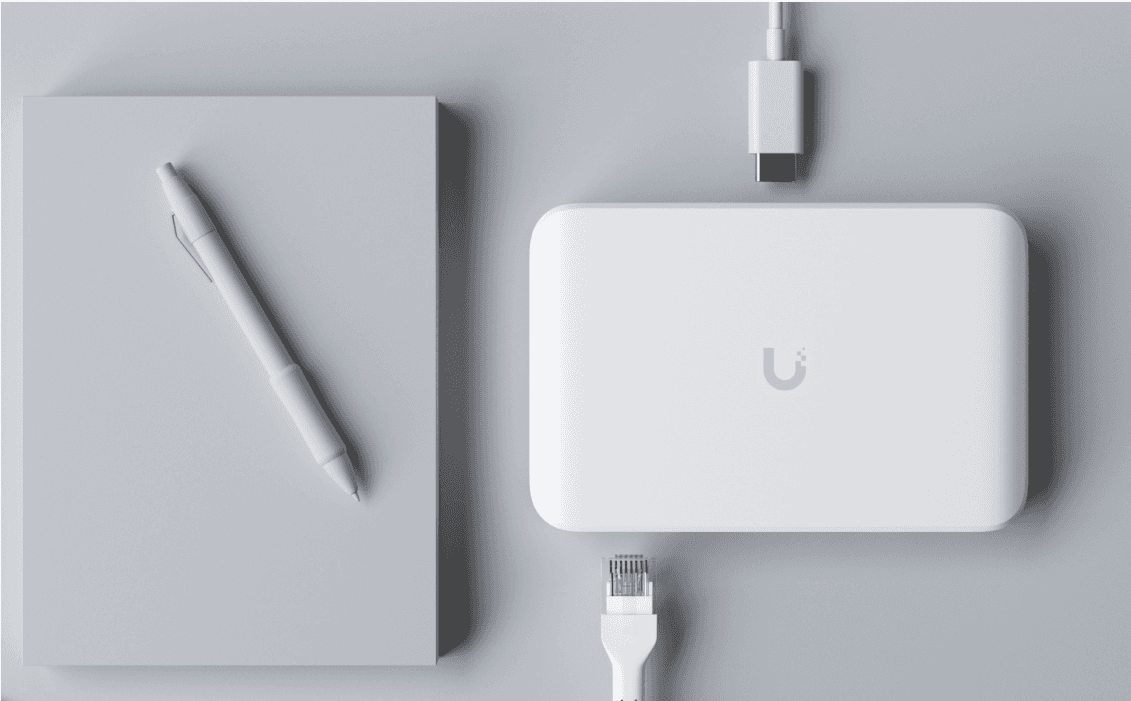

A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.

(4) GbE ports

(1) GbE PoE input port for power

Optional powering with included 5V, 1A USB-C adapter*

*Adapter included with single unit purchases.

Note . EU version comes with EU power plug only.

Single Unit 3-Pack 5-Pack

Mechanical
Dimensions	107 x 70 x 21 mm (4.2 x 2.8 x 0.8")
Weight	150 g (5.3 oz)
Enclosure material	Polycarbonate
Hardware
Management interface	Ethernet In-Band
Networking interface	(5) GbE RJ45 ports
Total non-blocking throughput	5 Gbps
Switching capacity	10 Gbps
Forwarding rate	7.44 Mpps
Power method	(1) USB Type C, 5V (1) PoE/PoE+, 44-57V DC, 0.05-0.04A
Power supply	5V, 1A power adapter* *Only single-unit packages include the 5V, 1A USB-C power adapter.
Supported voltage range	USB Type C: 4.7-5.3V DC PoE/PoE+: 44-57V DC
Max. power consumption	2.5W
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
Button	Factory reset
Ambient operating temperature	-5 to 45° C (23 to 113° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	Port isolation Storm control Port mirroring Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit
Layer 3 features	-
LEDs
System	Status
Ethernet	Speed/link/activity
Application Requirements
UniFi Network	Version 5.12.5 and later
