Ubiquiti (UWB-XG) Ubiquiti UniFi XG BaseStation - 1,500 Client Capacity, 10 Gbps, Beam-Forming IP67 Wi-Fi BaseStation, 2Yr Warr
- SKU:
- UWB-XG
- MPN:
- UWBXG
- Availability:
- Please contact us for availability
Frequently bought together:
Description
Product Description
Tri-radio WiFi 5 AP with 12 spatial streams and a selectable beamforming antenna, designed for high-density applications at large venues.
WiFi 5 (5 GHz only)
12 spatial streams
465+ m² (5,000+ ft²) open space coverage
1,500+ connected devices
Powered using PoE++
(1) GbE and (1) 10 GbE uplink

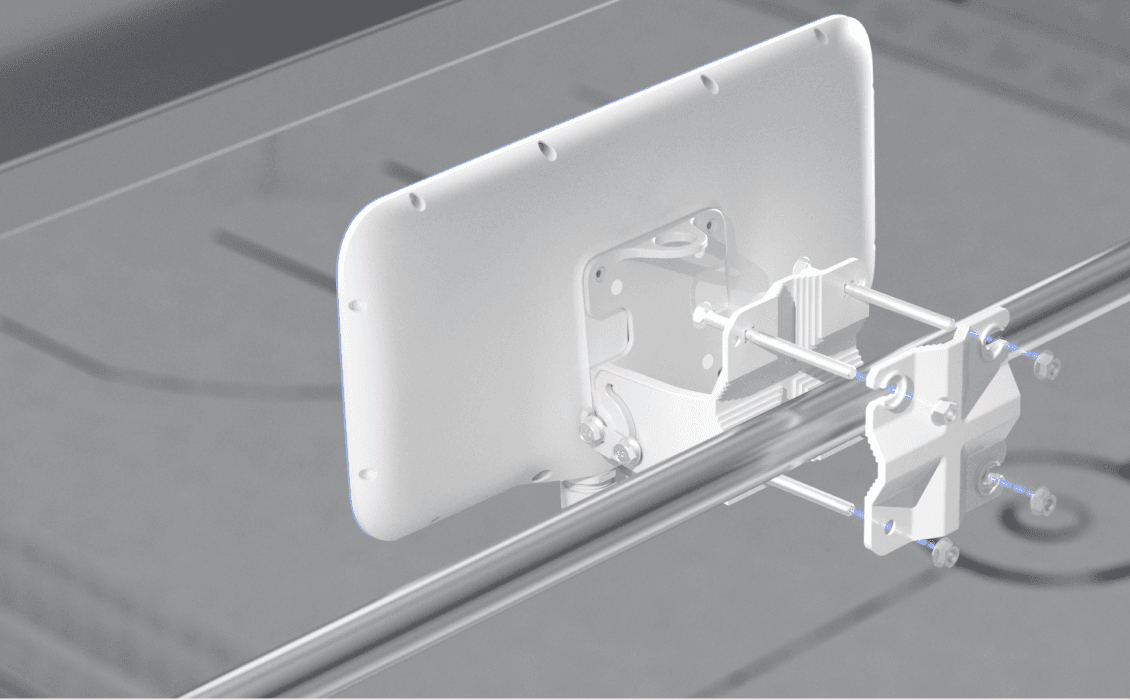

Versatile wall and pole mounting
Phased array antenna system with software-adjustable coverage (50° or 90°)
Weatherproof (outdoor exposed)
Technical Details
| Mechanical | |
|---|---|
| Dimensions | 471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7") |
| Weight | 3.2 kg (7.1 lb) |
| Weatherproofing | IP67 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE++ |
| Power supply | Gigabit PoE++ adapter 50V DC, 1.2A (Included) |
| Max. power consumption | 31W |
| Supported voltage range | 44-57V DC |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 25 dBm |
| MIMO 2.4 GHz 5 GHz 6 GHz | (3) 4 x 4 |
| Throughput rate 2.4 GHz 5 GHz 6 GHz | 1.7 Gbps |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | Small cell: 15 dBi / Large cell: 10 dBi |
| Antenna | Integrated dual-mode antenna array |
| Operating frequency 5 GHz low-band radio 5 GHz mid-band radio 5 GHz high-band radio | Ch 36-64 Ch 100-132 Ch 149-165 |
| Antenna beamwidth Small cell Large cell | 50° 90° |
| LEDs | R/G/B |
| Button | Factory reset |
| Mounting | VESA-compatible mount, pole/wall (Brackets included) |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11 a/n/r/k/v/ac/ac-wave2 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Power save | Supported |
| Beamforming | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 1500+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160) |
