Ubiquiti
Ubiquiti (UXG-Pro) Ubiquiti Next-generation UniFi Gateway Pro, Dual-WAN Security, Medium-Large Sized Networks, DC Power Backup, Compitable UCK-G2-PLUS, 2Yr Warr
- SKU:
- UXG-Pro
- MPN:
- UXGPro
- Availability:
- Not available
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Product Description
Multi-WAN security gateway designed to protect medium to large-sized networks with enterprise-class firewall configuration and threat management features.
Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
3.5+ Gbps routing with IDS/IPS
(1) 10G SFP+* and (1) GbE WAN port
(1) 10G SFP+* and (1) GbE LAN port

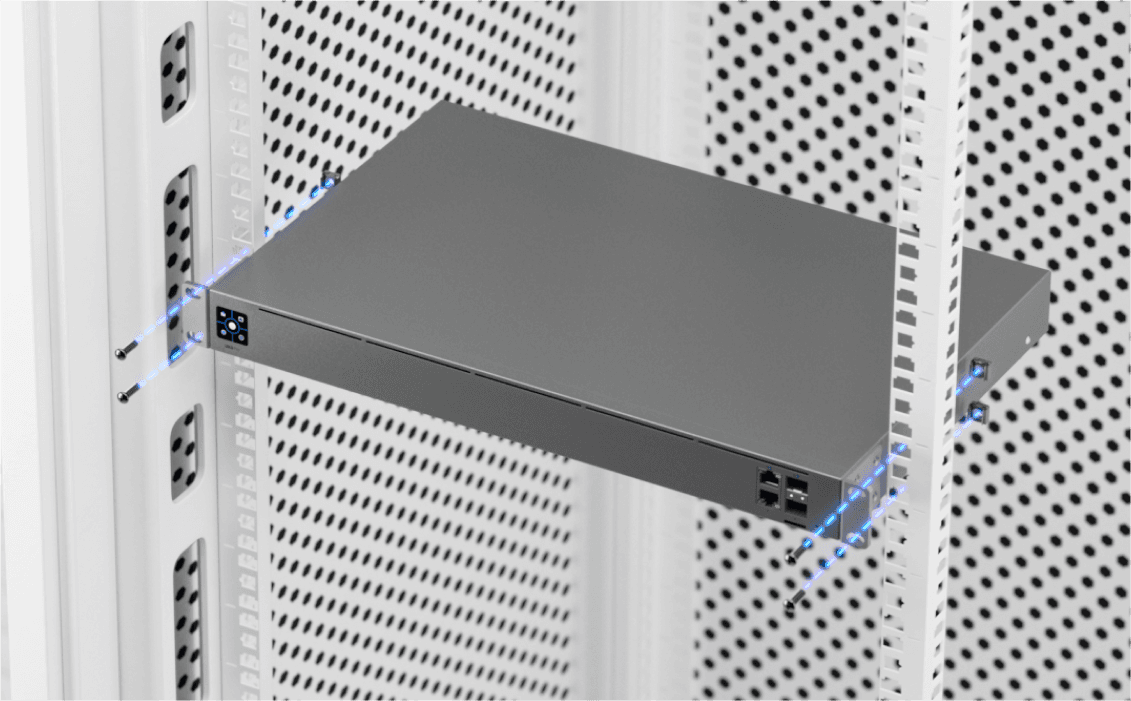

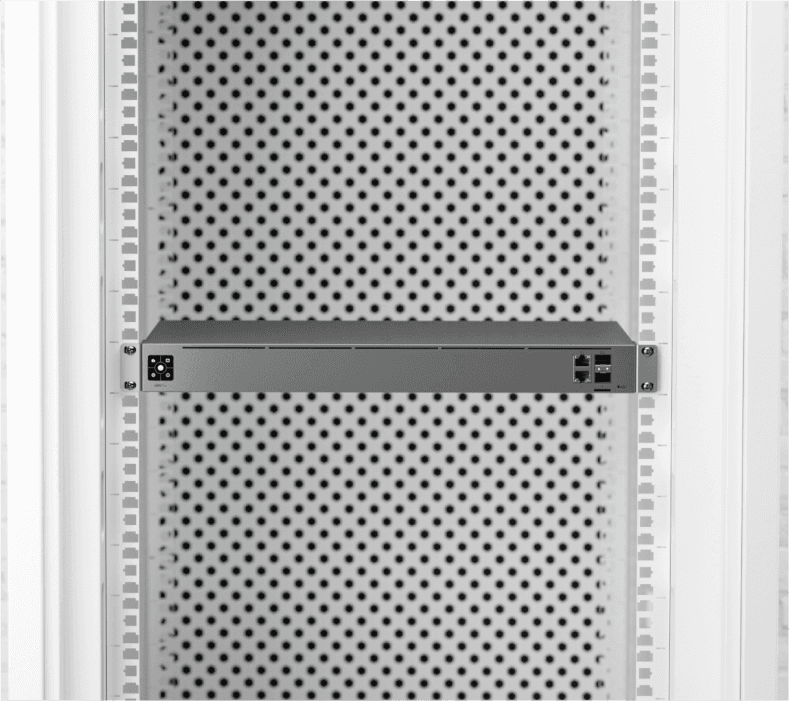

1U rackmount
DC power backup-ready
*Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.
Technical Details
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
| Weight | 3.4 kg (7.5 lb) |
| Enclosure material | Front panel: aluminum CNC Top cover/base: SGCC steel |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| Memory information | 2 GB DDR4 |
| Management interface | Ethernet |
| Networking interface | LAN: (1) 1 GbE RJ45 port (1) 10G SFP+ port WAN: (1) 1 GbE RJ45 port (1) 10G SFP+ port |
| Power method | US: (1) Universal AC input, 125V AC, 2.7A Max., 60 Hz (1) RPS DC input, 11.5V DC, 2.87A Worldwide: (1) Universal AC input, 200-240V AC, 1.7A Max., 50/60 Hz (1) RPS DC input, 11.5V DC, 2.87A |
| Power supply | AC/DC, internal, 50W |
| Max. power consumption | 30W |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -10 to 40° C (14 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN* WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport* and Identity Enterprise VPN** Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support *When paired with a Cloud Key or Official UniFi Hosting. **When paired with a Cloud Key. |
| LEDs | |
| Ethernet | Green/amber |
| SFP+ | White/green |
| AC outlet/ RPS | Blue |
| Software | |
| Management application | UniFi Network: Version 5.14.11 and later |
Product Details
In the Box
Build Features
