Ubiquiti
Ubiquiti (U6-LITE) Ubiquiti UniFi Wi-Fi 6 Lite Dual Band AP 2x2 high-efficency Wi-Fi 6, 2.4GHz @ 300Mbps & 5GHz @ 1.2Gbps **No POE Injector Included**, 2Yr Warr
- SKU:
- U6-LITE
- MPN:
- U6LITE
- Availability:
- Please contact us for availability
Frequently bought together:
Description
Product Description

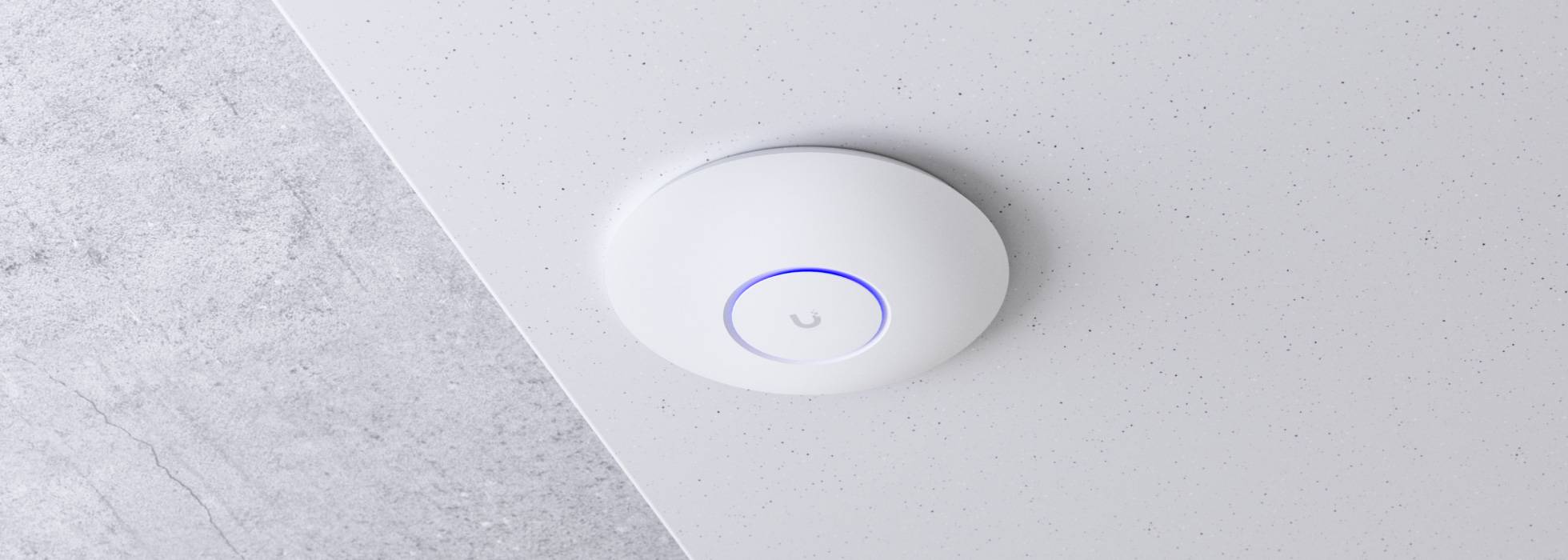

Compact, ceiling-mounted WiFi 6 AP with 4 spatial streams ideal for smaller offices.
WiFi 6*
4 spatial streams
115 m² (1,250 ft²) coverage
300+ connected devices
Powered using PoE
GbE uplink
*WiFi 6 for 5 GHz. WiFi 4 for 2.4 GHz.
Technical Details
| Mechanical | |
|---|---|
| Dimensions | 160 x 33 mm (6.3 x 1.3") |
| Weight | Without mount: 300 g (10.6 oz) With mount: 315 g (11.1 oz) |
| Enclosure material | Polycarbonate, aluminum |
| Mount material | Polycarbonate, SGCC steel |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE Passive PoE, 48V |
| Power supply | PoE 48V, 0.32A PoE adapter (Not included) |
| Supported voltage range | 44-57V DC |
| Max. power consumption | 12W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 23 dBm 23 dBm |
| MIMO 2.4 GHz 5 GHz 6 GHz | 2 x 2 2 x 2 |
| Throughput rate 2.4 GHz 5 GHz 6 GHz | 300 Mbps 1201 Mbps |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | 2.8 dBi 3 dBi |
| LEDs | White/blue |
| Button | Factory reset |
| Mounting | Wall, ceiling (Included) |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80) |
| Application Requirements | |
| UniFi Network | Version 5.14.3 and later |
