Ubiquiti (U7-Mesh) Ubiquiti U7-Mesh, Compact Indoor/Outdoor WiFi 7 AP, Integrated Long-Range Antenna System.

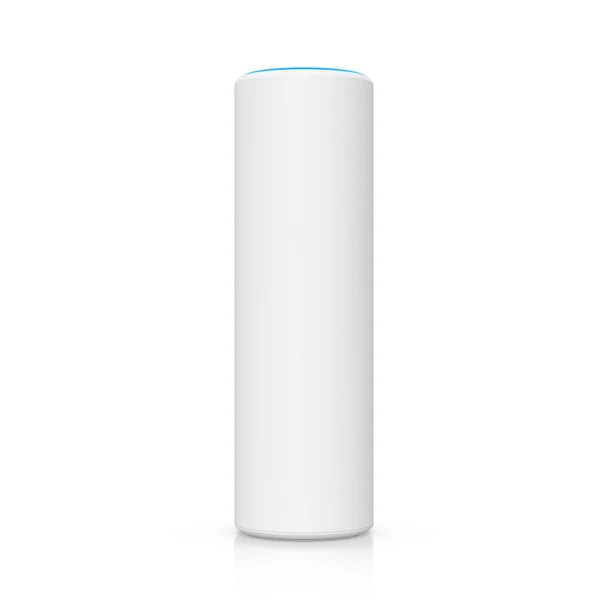

Ubiquiti U7 Mesh WiFi 7 Access Point

Extend your UniFi network indoors or outdoors with the compact U7 Mesh. Its combined directional and omnidirectional antenna design supports long-range mesh connections while providing coverage for nearby devices. A 2.5 GbE connection offers a wired uplink, with power delivered over Ethernet.

Key features

• Dual-band WiFi 7 on 2.4 GHz and 5 GHz, with four spatial streams.
• Coverage of up to 140 m² and support for more than 200 connected devices.
• One 2.5 GbE RJ45 port; PoE adapter included.
• IPX6 weather protection when installed with the included outdoor mount.
• Wall, pole and tabletop mounting options, with mounts included.
• Wireless meshing, fast roaming, band steering and guest-network isolation.

Specifications

• Dimensions: 48.5 mm diameter × 159.5 mm height; weight: 313 g.
• Maximum power consumption: 13 W.
• Operating temperature: −30°C to 60°C.
• Management: UniFi Network 10.1.85 or later.
• Manufacturer part number: U7-Mesh.

Coverage and throughput depend on installation, local conditions and regulatory limits. Position the U logos towards each other for the best mesh connection.
