Ubiquiti

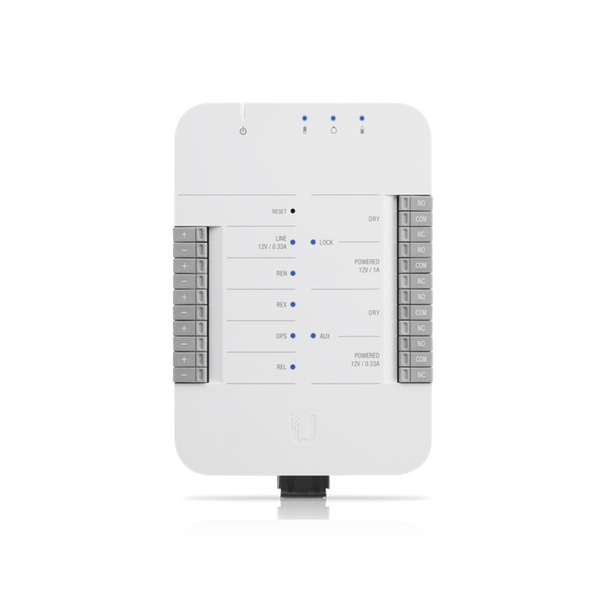

Ubiquiti (UA-HUB) Ubiquiti UniFi Access Hub - Single Door Entry Mechanism - PoE Powered, Supports UA-LITE and UA-PRO - Four Inputs and 12v Dry Relays for Most Door Lock
- SKU:
- UA-HUB
- MPN:
- UAHUB
- Availability:
- In Stock
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Product Description
A single-door mechanism that provides complete entry and exit control via connected Access Readers.
(2) Lock terminals (12V and Dry)
(2) AUX terminals for an external siren and automatic door opener
(4) Additional inputs (sensors and buttons)
Connect and power using PoE++
Connect to two UniFi Access readers and one UniFi Protect camera
Technical Details
| Mechanical | |
|---|---|
| Dimensions | 190 x 126 x 30.5 mm (7.5 x 5 x 1.2") |
| Weight | 457 g (1 lb) |
| Enclosure material | Plastic enclosure with metal mount plate |

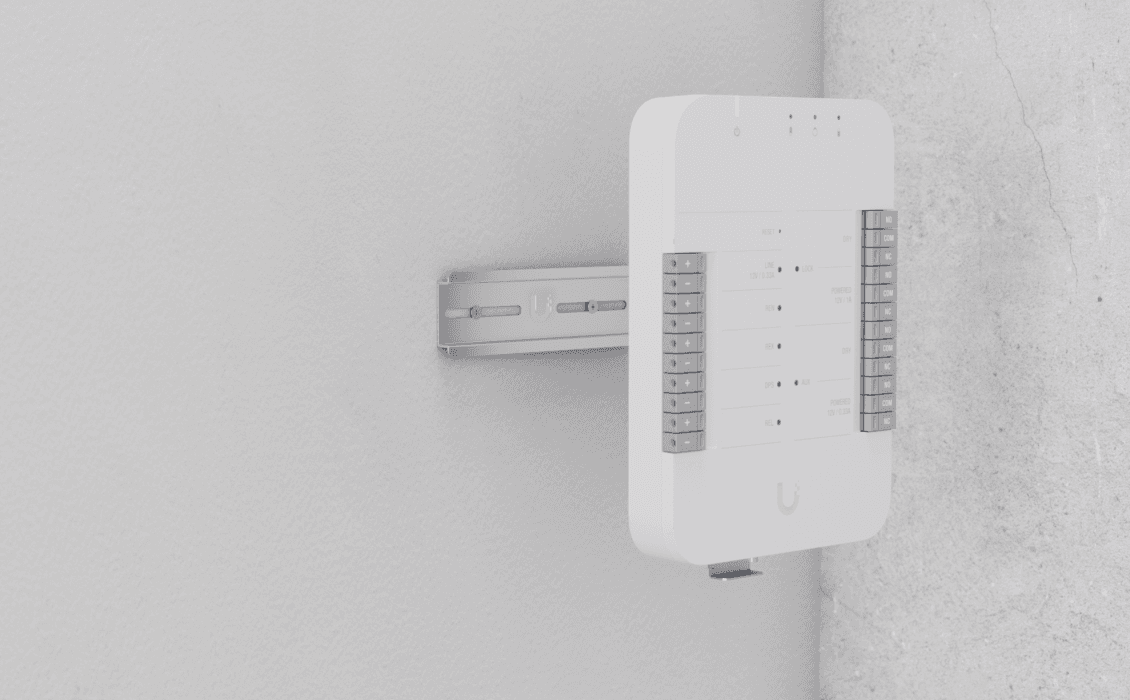

| Mounting options | DIN rail |
| Hardware | |
| Networking interface | (4) 1 GbE |
| PoE interface | (3) PoE (Pins 1, 2+; 3, 6-) |
| Power method | PoE++ |
| Supported voltage range | 48V DC |
| Max. power consumption | 51W |
| Total available PoE | 60W |
| Max. PoE wattage per port | 15.4 |
| Voltage range PoE mode | 44-57V DC |
| Input terminals | REX: request to exit REN: request to enter REL: remote release DPS: door position sensor |
| Dry output relay | Lock: rated 30V DC, up to 1A Aux: rated 30V DC, up to 1A |
| Powered output relay | Lock: 12V DC, up to 1A Aux: 12V DC, up to 0.33A Line: 12V DC, up to 0.33A |
| LEDs | (1) System, (3) PoE out, (4) Input (2) Output relays, (1) 12 V DC out |
| Button | (1) Factory reset |
| Operating environment | Indoor use only |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Product Details
Deplyment
Build Features
Product Video
