Ubiquiti (UCG-Industrial) Ubiquiti Cloud Gateway Industrial,Ruggedized, Fanless 10 GbE UniFi Cloud Gateway Delivering 350W, High-Density PoE, Advanced Routing, MicroSD Storage.

Write a Review
SKU:
UCG-Industrial
MPN:
UCGIndustrial
Availability:
In Stock
Shipping:
Calculated at Checkout
  • Ubiquiti (UCG-Industrial) Ubiquiti Cloud Gateway Industrial,Ruggedized, Fanless 10 GbE UniFi Cloud Gateway Delivering 350W, High-Density PoE, Advanced Routing, MicroSD Storage.
  • Ubiquiti (UCG-Industrial) Ubiquiti Cloud Gateway Industrial,Ruggedized, Fanless 10 GbE UniFi Cloud Gateway Delivering 350W, High-Density PoE, Advanced Routing, MicroSD Storage.
  • Ubiquiti (UCG-Industrial) Ubiquiti Cloud Gateway Industrial,Ruggedized, Fanless 10 GbE UniFi Cloud Gateway Delivering 350W, High-Density PoE, Advanced Routing, MicroSD Storage.
  • Ubiquiti (UCG-Industrial) Ubiquiti Cloud Gateway Industrial,Ruggedized, Fanless 10 GbE UniFi Cloud Gateway Delivering 350W, High-Density PoE, Advanced Routing, MicroSD Storage.
MSRP: $1,505.24
$1,400.49
Inc. GST
MSRP: $1,368.40
$1,273.17
Ex. GST
— You save $104.75

Frequently bought together:

Description

DESCRIPTION


UCG-INDUSTRIAL

Cloud Gateway Industrial

Ruggedised, fanless 10 GbE UniFi Cloud Gateway delivering 350W of total system power for high-density PoE deployments, with advanced routing capabilities and microSD storage for full UniFi application support.

UniFi Application Suite: Network, Protect, Access, Talk, Connect
Built-in WiFi 7 access point
Pre-installed 128 GB microSD for NVR
Max. WAN Port Count: 5
*The onboard SIM slots are exclusively for Remote SIM integration with the UniFi 5G Max Outdoor. Support coming soon via software update.
WiFi 7
Built-in Access Point
50+
Managed UniFi Devices
500+
Simultaneous Users Connected
5 Gbps
IDS/IPS Throughput
Overview
All-New UniFi Industrial Initiative

Industrial networks do not get second chances. They sit in wind, dust, vibration, and heat, and they are expected to perform without excuses 24/7. That is the thinking behind the new UniFi Industrial initiative. Ruggedised, fanless, and purpose built for extreme environments, the line launches with its first device: Cloud Gateway Industrial. It may look familiar at first glance, but this platform was designed to go well beyond a typical gateway, while running the UniFi applications you know and rely on.

Performance
Built for Extreme Environments

Cloud Gateway Industrial carries the DNA of our 10 Gigabit gateways and their software innovations, but it is reinforced for places where standard hardware struggles: the chassis is hardened, the design is fanless. More than just stronger physical construction, it is engineered from the ground up to operate where dust, vibration, and temperature swings are part of daily life. Integrated WiFi 7 and support for flexible external antennas ensure client connectivity, even when installations are unconventional.

Connectivity
Power and Connectivity Without Compromise

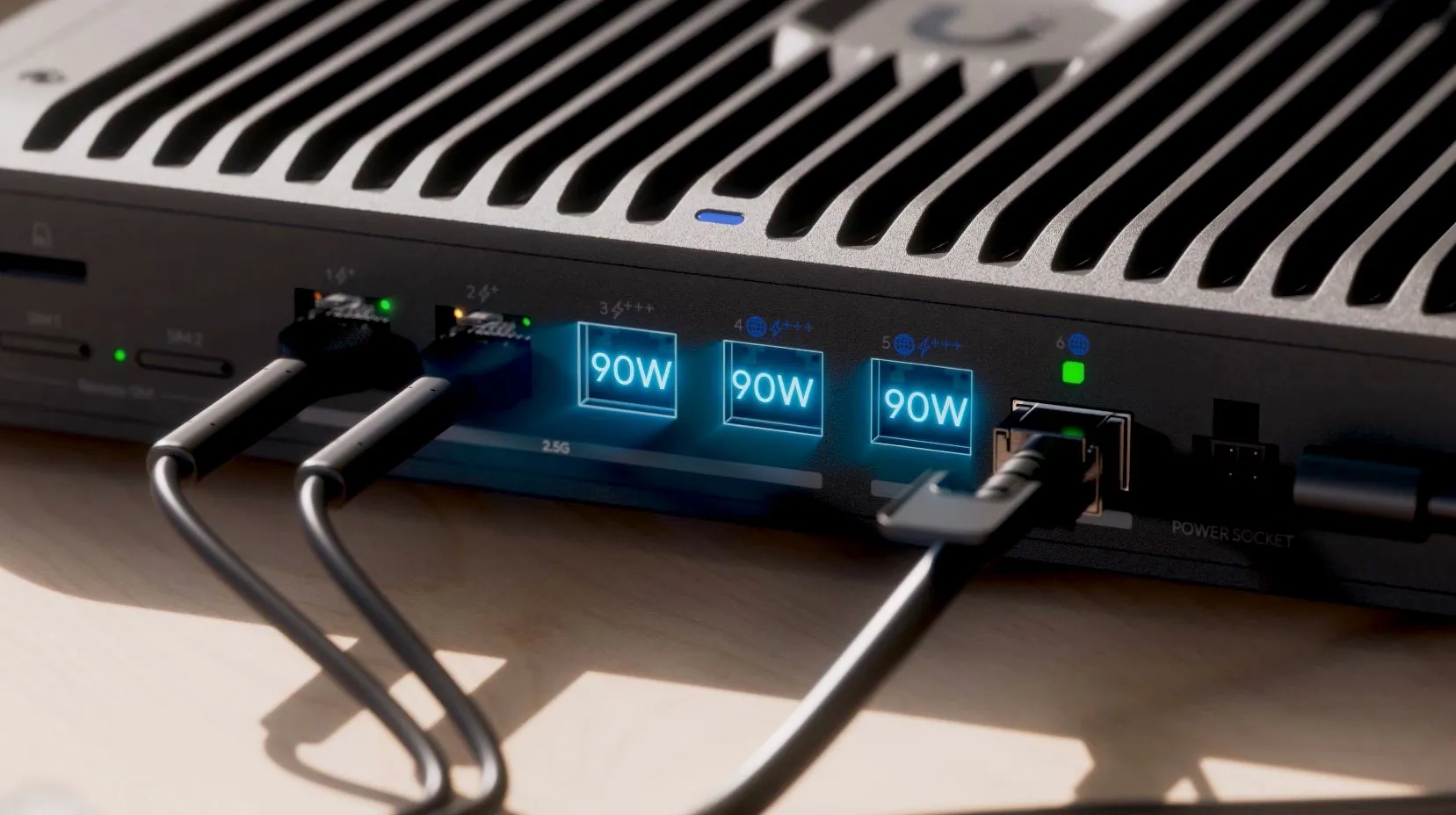

Power delivery often becomes the limiting factor in remote or edge deployments. Cloud Gateway Industrial addresses this head on with multiple PoE+++ 90 watt ports. That level of output makes it possible to directly power multi LEO satellite terminals and downstream switches without additional injectors or complex power chains. The gateway itself can be powered either via its included power supply or 48V 4-pin DC connection.

Internal SD storage allows full UniFi Application support directly on the device. Remote SIM slots simplify cellular provisioning when paired with UniFi 5G Outdoor, reducing the friction of bringing remote sites online. The result is a gateway that does more than route traffic. It becomes the operational core of the deployment.

Power and Connectivity
Versatile
Modular Deployment, Zero Hardware Guesswork

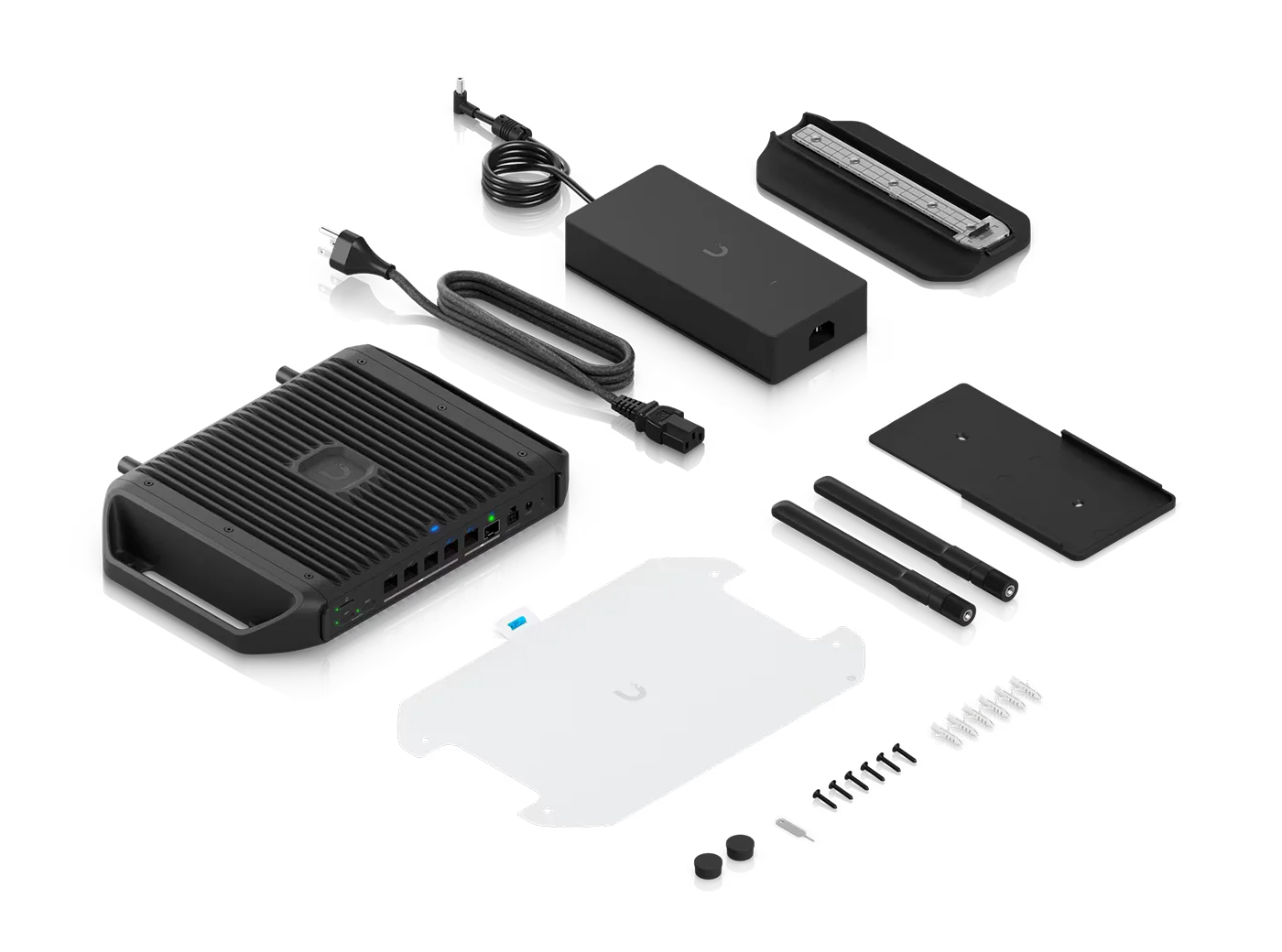

Industrial installations rarely follow a standard blueprint. One site has equipment installed under a desk. At the next site it is wall mounted or dropped into a rack. The modular enclosure of Cloud Gateway Industrial was designed with that reality in mind.

It supports flat or vertical desktop placement, under desk mounting, wall installation, and full rack deployment. The Transformable Deployment system makes reconfiguration immediate. Slide out one handle to attach the included compact vertical stand. Slide out both to insert the unit into an optional 19" rack mount, complete with its own power supply tray. No alternate SKUs, all done with a single Cloud Gateway Industrial.

* Rack mount sold separately.

Features

Centralised Control with Site Manager

Managing one industrial site is straightforward. Managing dozens is where complexity creeps in. The new Site Manager orchestration layer addresses that challenge by allowing multiple UniFi and UniFi Industrial deployments to be managed from a single interface.

There are no licensing tiers to navigate and no recurring management fees. It is centralised control designed to scale with the footprint of the deployment, whether that footprint spans a single facility or a distributed network of remote locations.


Full UniFi Suite Support

Runs the full UniFi application suite with support for 50+ managed UniFi devices and 500+ simultaneously connected users.


Multi-WAN and SLA Ready

Utilise up to 5 WAN ports with intelligent failover, traffic distribution and performance monitoring.


Integrated 10G Connectivity

Support demanding clients and high-bandwidth applications with integrated 10G ports (10G SFP+ and 10 GbE RJ45).


Dual-Radio WiFi 7

Dual-Radio WiFi 7 2.4/5 GHz with 4 spatial streams and external antennas for reliable coverage.

Deployment & Features





Frequently Asked Questions
How to add cellular connectivity to the Cloud Gateway Industrial?



What is the purpose of Remote SIM on the Cloud Gateway Industrial?



Can the Cloud Gateway Industrial be used as a UniFi Protect NVR?



What is the maximum PoE output per port?



  •
  •
What are the PoE capabilities of Cloud Gateway Industrial?



  •
  •

Technical Specs
Overview
Dimensions
Device: 307.9 x 203.5 x 43.7 mm (12.1 x 8 x 1.7")
Table stand: 203.5 x 100.2 x 21.9 mm (8 x 3.9 x 0.9")
UniFi Application Suite
Network: Yes
Protect: Yes
Access: Yes
Talk: Yes
Connect: Yes
Managed UniFi Devices
50+
Managed Cameras
(15) HD
(8) 2K
(5) 4K
Managed Access Hubs
50
Please note, Reader Pro and Intercom quantities must be below Protect supported camera limits.
Simultaneous Users Connected
500+
Max. WAN Port Count
5
Default WAN Ports
(1) 10G SFP+
(1) 10 GbE RJ45
(1) 2.5 GbE RJ45
Port Layout
2.5 GbE RJ45: 4 (2 PoE+++, 2 PoE+)
(2.5G/1G/100M)

10 GbE RJ45: 1 (PoE+++)
(10G/5G/2.5G/1G/100M)

10G SFP+: 1
(10G/1G)
IDS/IPS Throughput
5 Gbps
Form Factor
Wall-mounted
Compact desktop (Table stand included)
Rack mount (Accessory sold separately)
Coverage Area
115 m² (1,250 ft²)
Security
Stateful Firewall
Yes
Application-Aware Layer 7 Firewall
Yes
DPI & Traffic Identification
Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes
Content Filtering
Yes
Intrusion Prevention (IPS/IDS)
Yes
Ad Blocking
Yes
IDS/IPS Signatures
55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
Yes
VPN & SD-WAN
License-Free SD-WAN
Yes
Site-to-Site VPN
Site Magic: Yes
IPsec: Yes
OpenVPN: Yes
VPN Server
Identity Endpoint One-Click VPN: Yes
Teleport Zero-Configuration VPN: Yes
WireGuard: Yes
OpenVPN: Yes
L2TP: Yes
VPN Client
OpenVPN: Yes
WireGuard: Yes
Networking
Multi-WAN Load Balancing
Yes
Dynamic Routing
OSPF: Yes
Advanced QoS
Yes
Multicast DNS (mDNS)
Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes
Integrated RADIUS Server
Yes
RADIUS over TLS (RadSec)
Yes
Additional Internet Failover with UniFi LTE Backup
Yes
Internet Quality and Outage Reporting
Yes
MAC Address Table Size
4,000
Virtual Network Override
Yes
All Traffic Flows
—
Blocked traffic only
Integrated WiFi
WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Throughput
5 GHz: 4.3 Gbps
2.4 GHz: 688 Mbps
MIMO
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Antenna Gain
5 GHz: Stub antenna: 5 dBi, Terminal (Omni) antenna: 6 dBi
2.4 GHz: Stub antenna: 3 dBi, Terminal (Omni) antenna: 6 dBi
Max. TX Power
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b
1, 2, 5.5, 11 Mbps

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
Hardware
NVR Storage
Pre-installed 128 GB microSD for NVR
Expansion Slot
MicroSD Card
PoE Budget
DC input: 270W
ATX power: 75W
Max. PoE Wattage per Port by PSE
PoE+: 30W
PoE+++: 90W
Voltage Range PoE Mode
50-57V
Max. Power Consumption
28W (Excluding PoE output)
Power Method
(1) DC Input (350W PSU)
(1) ATX power (48V)
Power Supply
54V DC, 350W (Adapter included)
ATX power (48V)
Supported Voltage Range
100-240V AC
Heat Dissipation
95 BTU/hr (Excluding PoE output)
Processor
Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory
3 GB
Weight
Device: 2.4 kg (5.3 lb)
Table stand: 321 g (11.3 oz)
Enclosure Material
Device: Polycarbonate, aluminium alloy
Table stand: Polycarbonate, galvanised steel, silicone rubber
Management
Ethernet, Bluetooth
LEDs
Ethernet, SFP+, System, MicroSD, SIM
Button
(1) Factory reset
(2) Handle release buttons
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
CE, FCC, IC
Software
Application Requirements - Mobile App
UniFi iOS™: Version 10.32.0 and later
UniFi Android™: Version 10.35.0 and later
