Ubiquiti (Wave-Nano) UISP Wave Nano, 60 GHz PtMP station powered by Wave Technology.

Write a Review
SKU:
Wave-Nano
MPN:
WaveNano
Availability:
In Stock
Shipping:
Calculated at Checkout
RRP: $611.58
$581.72
Inc. GST
RRP: $555.98
$528.84
Ex. GST
— You save $29.86

Frequently bought together:

Description

Product Description

60 GHz PtMP station powered by Wave Technology.

distance Max. link range: ‚- Wave AP: 5 km ‚- Wave AP Micro: 4 km

5ghz_radio Max. throughput: 2 Gbps (1 Gbps duplex)

radios 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)

rj45_port (1) GbE RJ45 port

locate Integrated GPS & Bluetooth

Technical Details

Mechanical
Dimensions 256.5 x 113.5 mm (10.1 x 4.5")
Weight Without mount: 932 g (2.1 lb) With mount: 1.2 kg (2.6 lb)
Enclosure material Aluminum alloy, UV stabilized plastic
Mount material Aluminum alloy, UV stabilized plastic
Pole mount diameter 25 to 63.5 mm (1 to 2.5") on pipe outer diameter
Wind loading 127 N at 200 km/h (28.6 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Processor Dual-core ARM® Cortex®-A53 at 1 GHz
Memory DDR3L 512 MB
Networking interface (1) GbE RJ45 port
Max. power consumption 20W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44-54V DC only
Power supply 48V DC, 0.65A gigabit PoE adapter (Included) Can be powered by a UISP Router or UISP Switch
Supported voltage range 44-54V DC 22-27V DC
GPS Yes
Button Factory reset
LEDs Power, Ethernet, GPS, link
Ambient operating temperature -40 to 60° C (-40 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
Software
Operating mode PtMP station, PtP* *FW version 3.2.0 and later.
Ubiquiti specific features Wave AI, discovery protocol
Services UISP, ping watchdog, NTP client, SNMP
Tools Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey* *FW version 3.3.0 and later.
Network Bridge/Router* mode *Router is available in PtMP station mode only.
Application requirements UISP: Version 1.4.5 and later
System
Total throughput 2 Gbps (1 Gbps duplex)
Max. range 5+ km
Encryption WPA2-PSK (AES)
RF
Operating frequency* 57-71 GHz *Depends on regulatory region.
Channel bandwidth 2160, 1080, 540* MHz *FW version 3.3.0 and later.
Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region.
Modulation 16QAM, QPSK
Antenna gain 41 dBi
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 1.4° Elevation: 3 dB 1.4°
Back-Up RF
WiFi standard 802.11ax (WiFi 6)
Operating frequency* US/CA Worldwide U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region.
Channel bandwidth 20, 40, 80 MHz
Modulation BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6)
Antenna gain 19 dBi
Polarization Dual-linear
Beamwidth Azimuth: 3 dB 14° Elevation: 3 dB 14°
Cross-pol isolation 20 dB
LEDs
Power Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress
Ethernet Flashing blue: Ethernet traffic detected
GPS Blue: receiving at least (4) GPS satellite signal
Links White: 5 GHz link Blue: 60 GHz link

Product Details

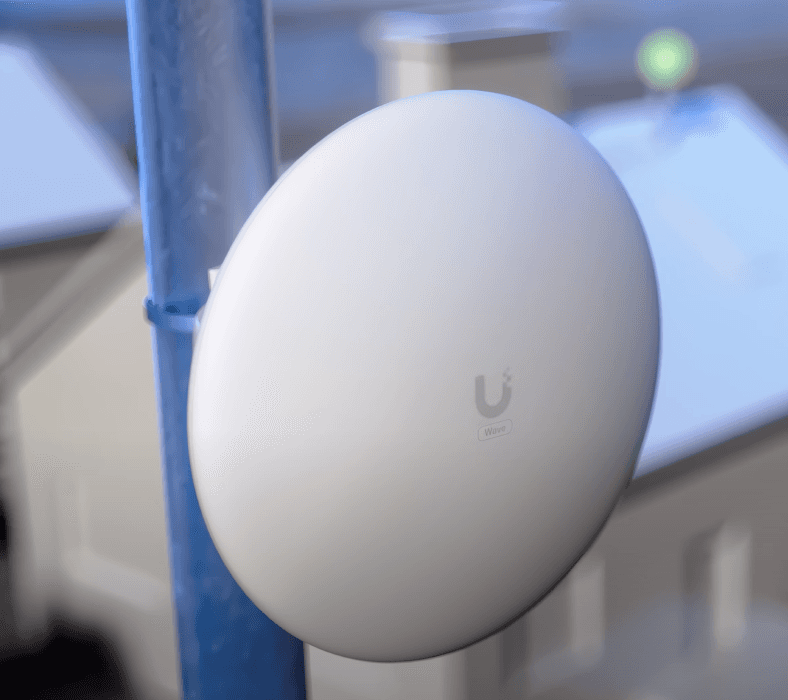

Wave Nano

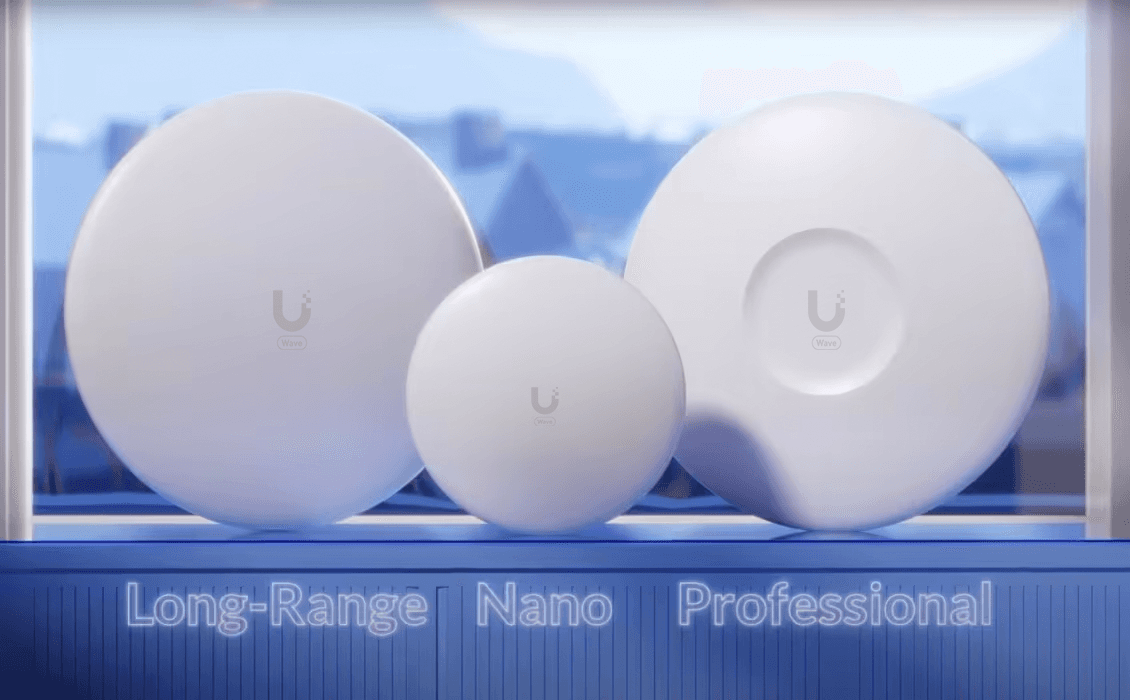

Wave Nano

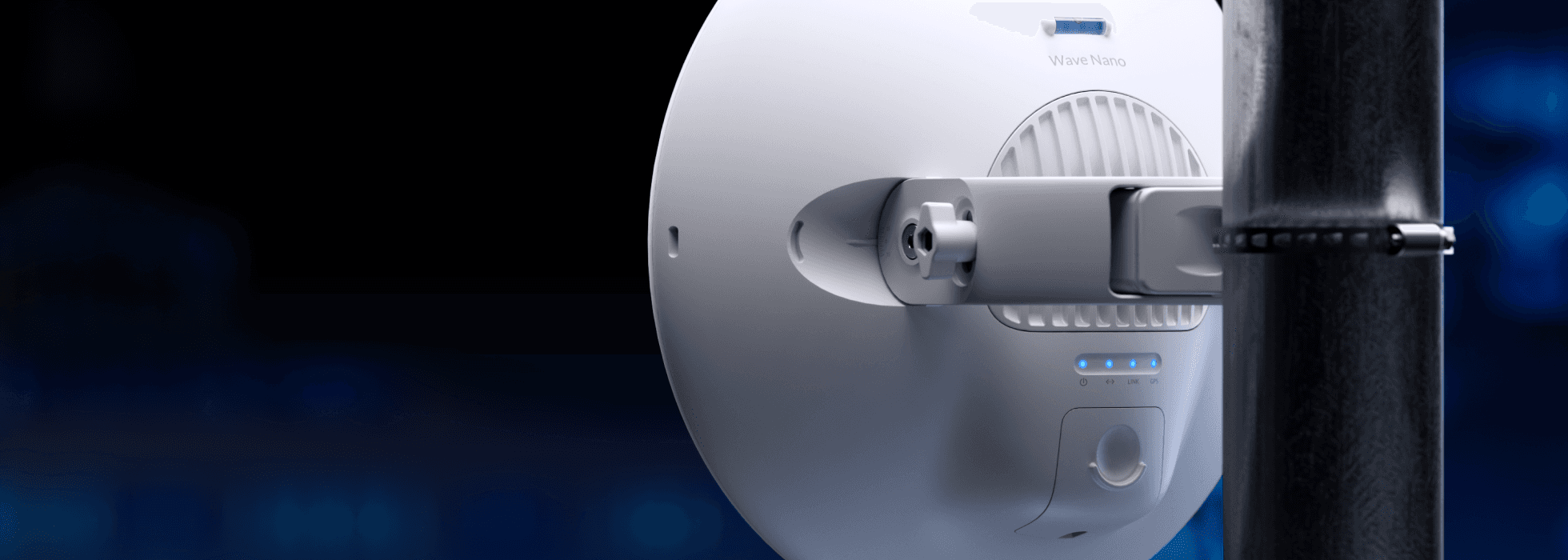

Wave Nano

Build Features

Build Features

Installation Guide
