Ubiquiti
Ubiquiti (UVC-AI-Theta-Pro) Ubiquiti AI Theta 4K (8MP) Resolution, Ultra-wide 360° View, Designed to Discreetly Provide a Panoramic View of Large, Busy Spaces, 2Yr Warr
- SKU:
- UVC-AI-Theta-Pro
- MPN:
- UVCAIThetaPro
- Availability:
- Please contact us for availability
Frequently bought together:
Description
Product Description
A complete ceiling 360° AI Theta system designed to discreetly provide a panoramic view of large, busy spaces.
Kit includes (1) AI Theta Hub, (1) Pro 360 Lens, (1) Standard Flush Mount, and (1) Pro Flush Mount
4K (8MP) resolution with ultra-wide 360° view
Exceptional image quality with superb low-light performance and enhanced dynamic range
Advanced AI: Detect people, read license plates, and more*

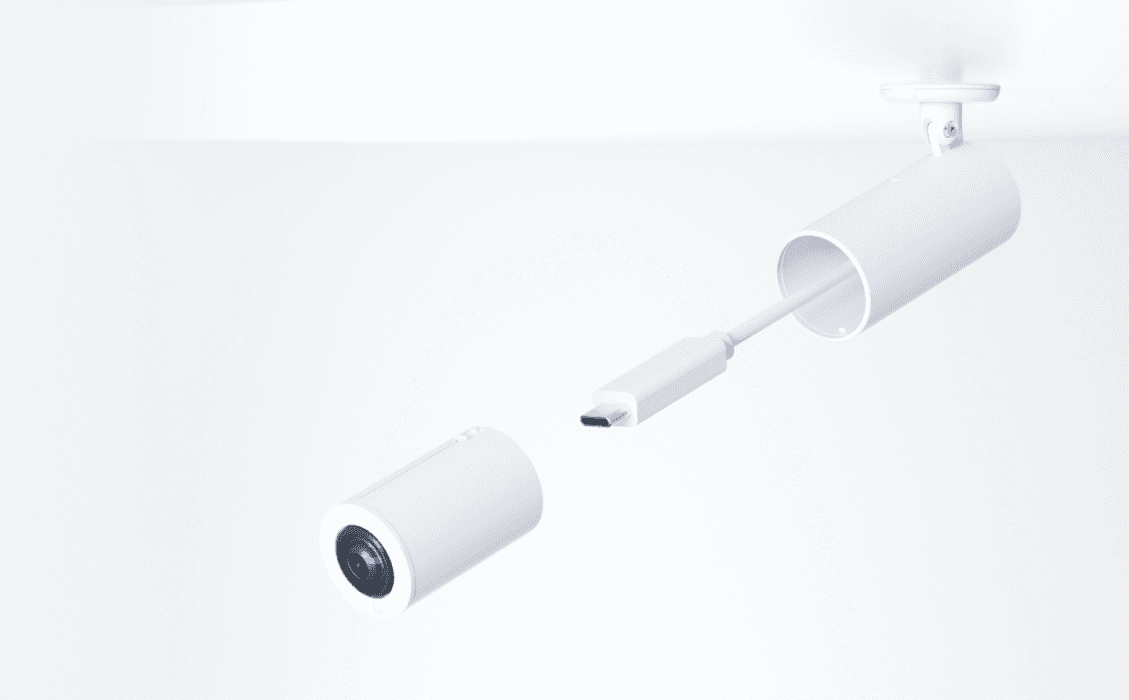

Minimal footprint with lens separated from the camera body

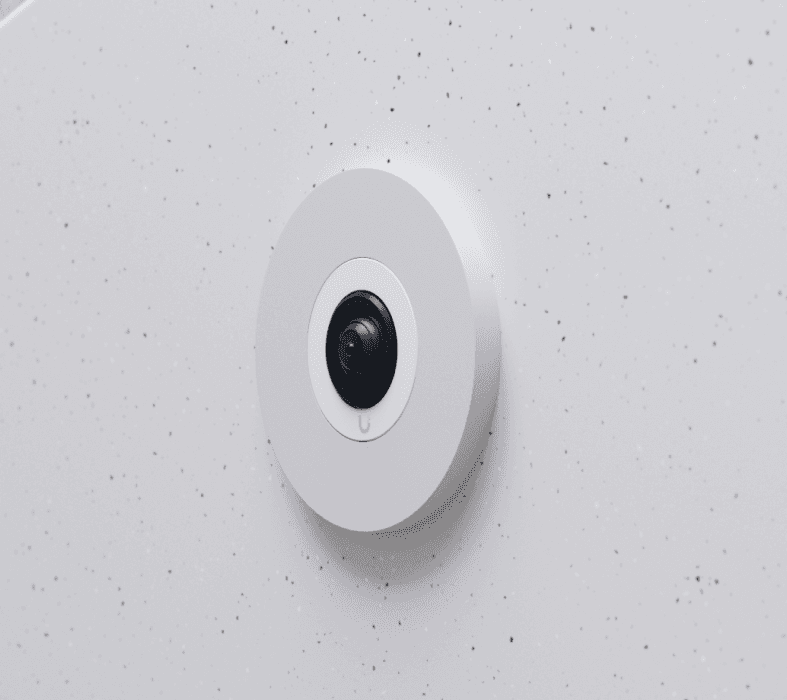

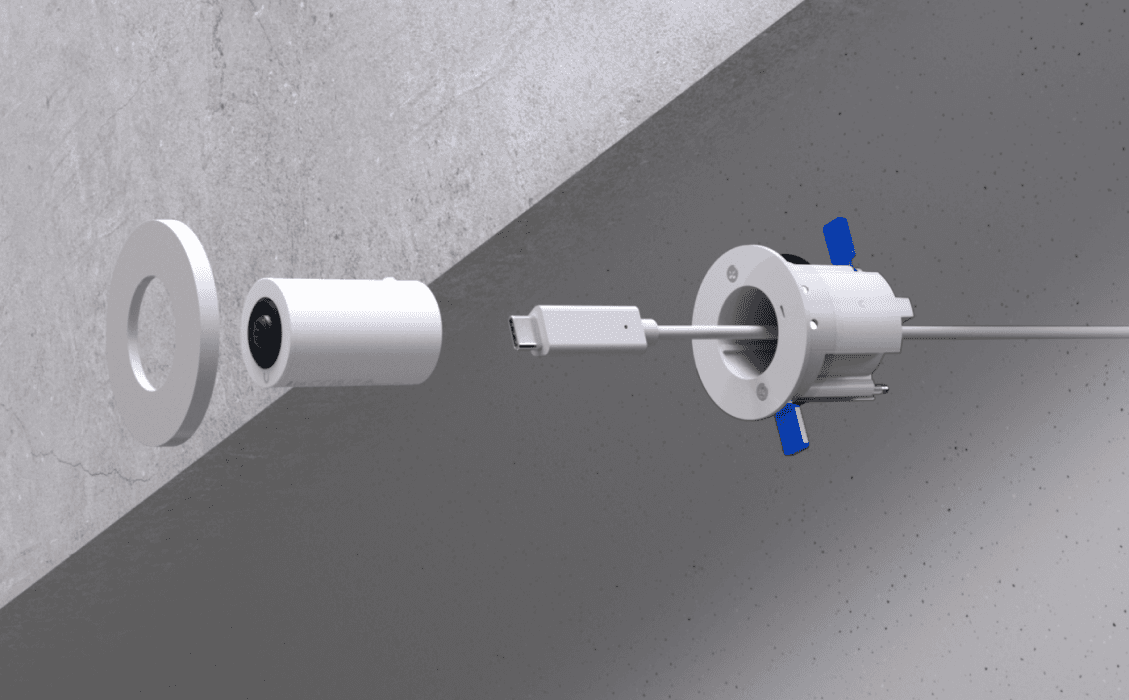

Included Pro Flush Mount allows for mounting lens without access to the rear of a ceiling or wall

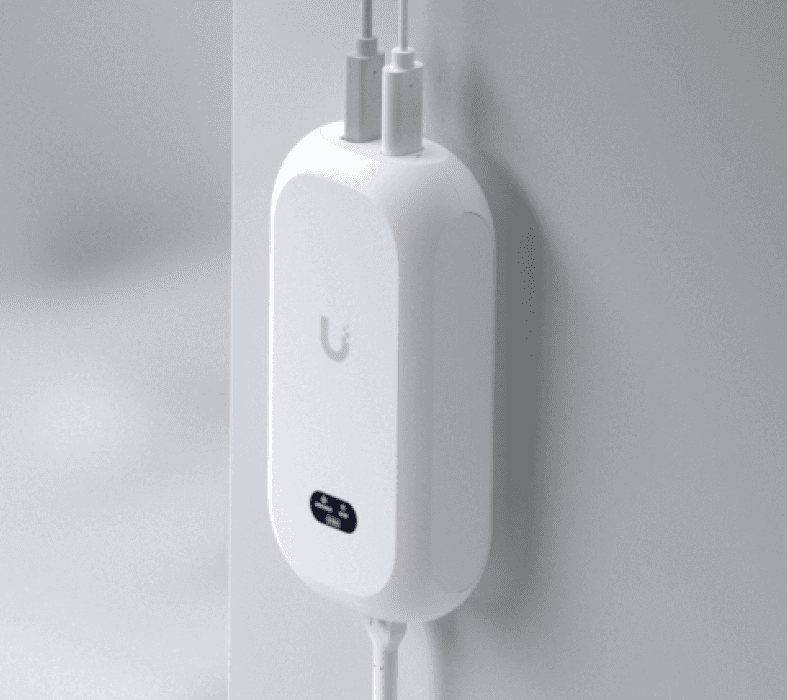

PoE-powered hub that connects to lens with included cable
Supports optional AI Theta Audio module for two-way audio
*License plate recognition supported with Long-Distance and Wide-Angle lenses.
Technical Details
| Mechanical | |
|---|---|
| Dimensions | UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5) UVC-AI-Theta-ProLens360: 36.6 x 58.9 mm (1.4 x 2.3) UVC-AI-Theta-ProLens360 Flush Mount: 54.6 x 60.4 mm (2.2 x 2.4) |
| Weight | UVC-AI-Theta-Hub: 330 g (11.6 oz) UVC-AI-Theta-Hub Mount: 35 g (1.2 oz) UVC-AI-Theta-ProLens360: 58 g (2 oz) UVC-AI-Theta-ProLens360 Flush Mount: 24 g (0.8 oz) |
| Enclosure material | UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-ProLens360: aluminum alloy, polycarbonate |
| Mount material | UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-ProLens360 Flush Mount: polycarbonate |
| Cable jacket enclosure dimensions | 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3") |
| Cable jacket enclosure material | PVC |
| Cable length | 1 m (3.3 ft) |
| Cable diameter | 3.7 mm (0.15") |
| Cable jacket material | Woven fabric |
| Cable weight | 18 g (0.63 oz) |
| Cable connector type | Theta proprietary |
| Optics | |
| Sensor | 8MP 1/1.8" CMOS |
| Lens | Fixed focal length |
| View angle | H: 180°, V: 180°, D: 180° |
| Video | |
| Resolution | 4MP 2160 x 2160 (1:1) |
| Max. frame rate | 24 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Power supply | 5V DC, 0.5A |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Networking interface | GbE RJ45 port |
| Max. power consumption | 12.5W |
| Power method | PoE |
| Supported voltage range | 37-57V DC |
| Output power | 5V DC, 1A per port |
| Display | 0.96" color display |
| Button | Factory reset |

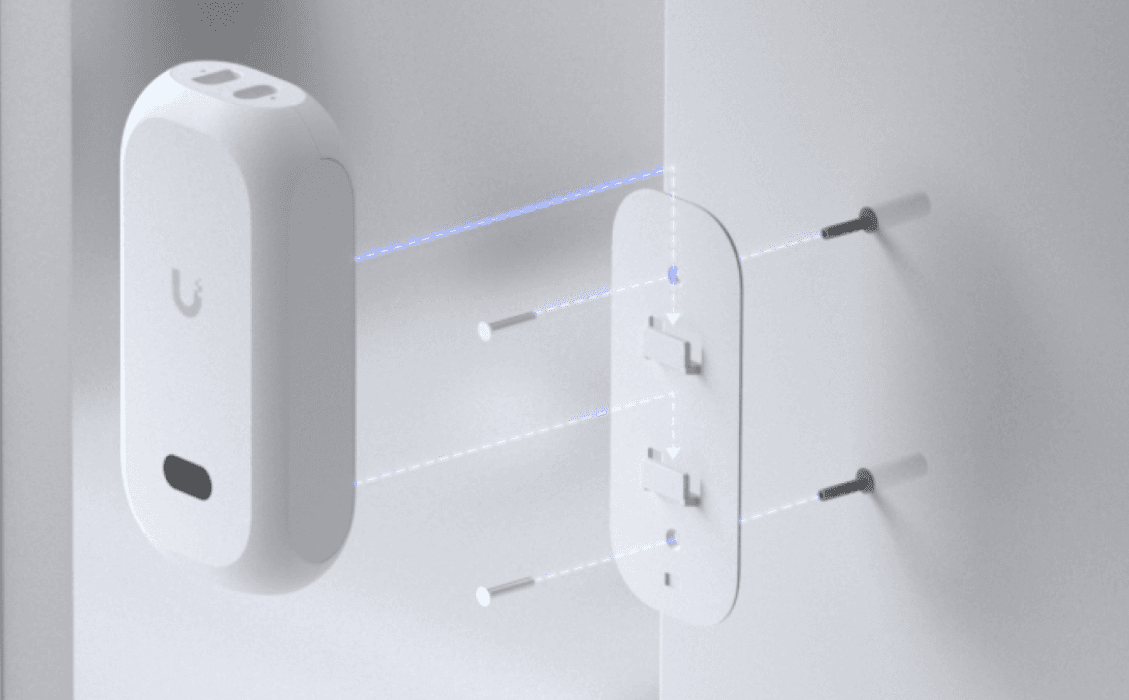

| Mounting | Wall, ceiling mount |
| Ambient operating temperature | -20 to 40° C (-4 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Supports optional AI Theta Audio module for two-way audio (sold separately) |
| Speaker | Supports optional AI Theta Audio module for two-way audio (Sold separately) |
| Software | |
| UniFi OS application | UniFi Protect |
| Mobile app | UniFi Protect iOS and Android |
