Ubiquiti

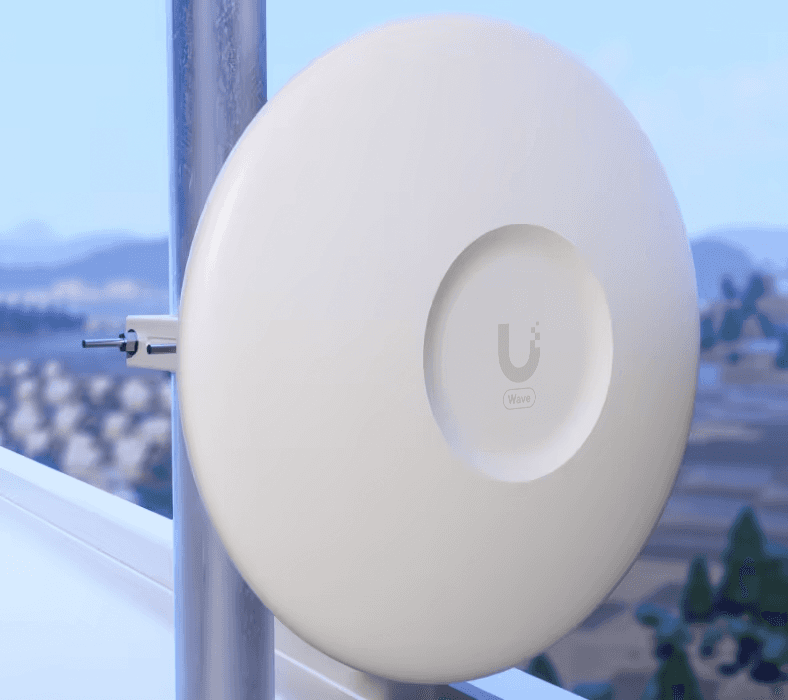

Ubiquiti (Wave-Pro) Ubiquiti Wave Professional, High-capacity 60 GHz radio that Supports Long-distance PtP (bridge) & PtMP links, 2.5 GbE, 10G SFP+ ports, 2Yr Warr
- SKU:
- Wave-Pro
- MPN:
- WavePro
- Availability:
- Not available
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Product Description
High-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links.
Max. link range: - PtP: Up to 15 km - PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)
Max. throughput: 5.4 Gbps (2.7 Gbps duplex)
5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
(2) 2.5 GbE and (1) 10G SFP+ ports
Ergonomic transportation handle
Precision alignment mount
Integrated GPS & Bluetooth
Technical Details
| Mechanical | |
|---|---|
| Dimensions | 424.4 x 166.2 mm (16.7 x 6.5") |
| Weight | Without mount: 2.8 kg (6.2 lb) With mount: 4 kg (8.8 lb) |
| Enclosure material | Aluminum alloy, UV stabilized plastic |
| Mount material | Stainless steel |
| Pole mount diameter | 25 to 76.2 mm (1 to 3") on pipe outer diameter |
| Wind loading | 369 N at 200 km/h (83 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | DDR3L 512 MB |
| Networking interface | (2) 2.5 GbE RJ45 ports (1) 10G SFP+ port |
| Max. power consumption | 26W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44-54V DC only |
| Power supply | 48V DC, 0.65A, 2.5 GbE PoE adapter (Included) |
| Supported voltage range | 44-54V DC 22-27V DC |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, (2) Ethernet, SFP+ , GPS, link |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating mode | PtP, PtMP station |
| Ubiquiti specific features | Integrated 60 GHz radio, discovery protocol, Wave technology |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey* *FW version 3.3.0 and later. |
| Network | Bridge/Router* mode *Router is available in PtMP station mode only. |
| Application requirements | UISP: Version 2.3.0 and later |
| System | |
| Total throughput | 5.4 Gbps (2.7 Gbps duplex) |
| Max. range | PtP: Up to 15 km PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro) |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57 to 71 GHz *Depends on regulatory region. |
| Channel bandwidth | 2160, 1080, 540* MHz *FW version 3.3.0 and later. |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 46 dBi |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 1.3° Elevation: 3 dB 1.3° |
| Back-Up RF | |
| WiFi Standard | 802.11ax (WiFi 6) |
| Operating frequency* US/CA Worldwide | U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Max. conducted TX power | 27 dBm |
| Modulation | BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6) |
| Antenna gain | 22 dBi |
| Polarization | Dual-linear |
| Beamwidth | Azimuth: 3 dB 8° Elevation: 3 dB 8° |
| Cross-pol isolation | 20 dB |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | (2) Flashing blue: Ethernet traffic detected |
| SFP+ | (1) Flashing blue: SFP+ traffic detected |
| Links | White: 5 GHz link Blue: 60 GHz link |
| GPS | Blue: receiving at least (4) GPS satellite signal |
